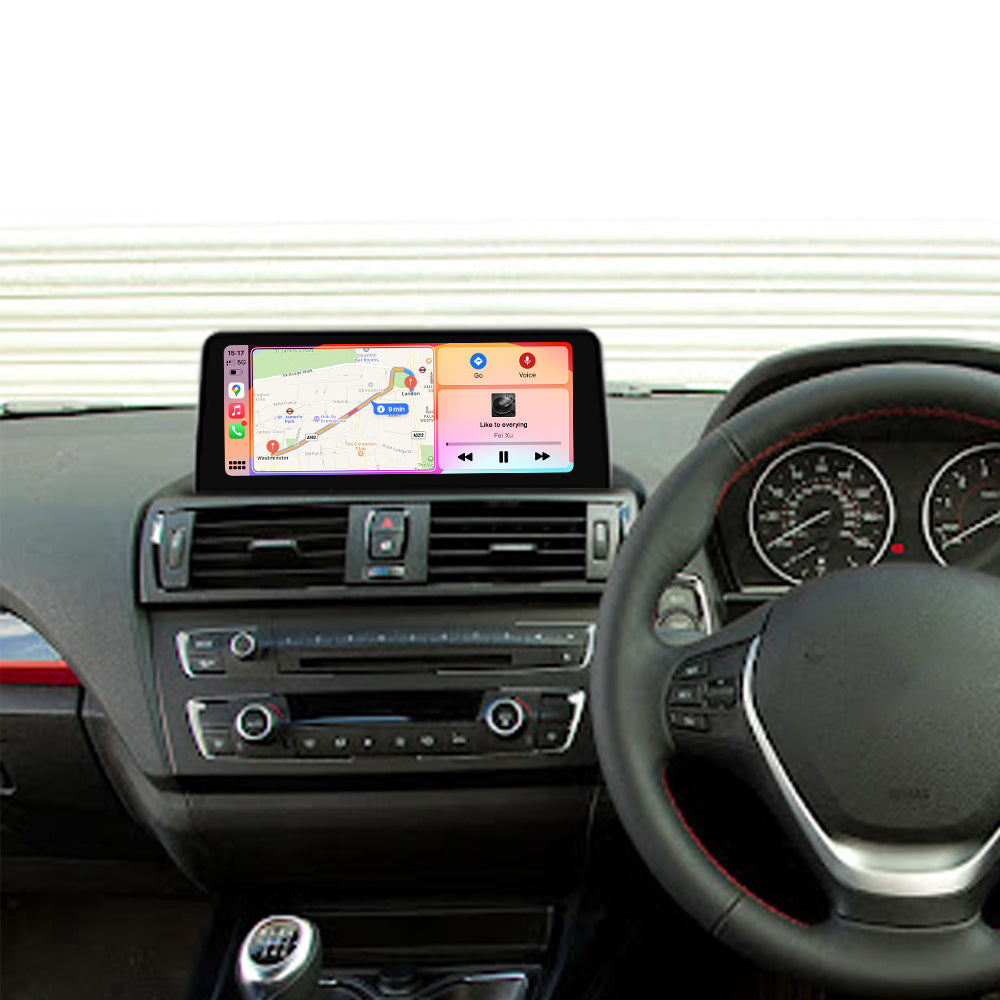

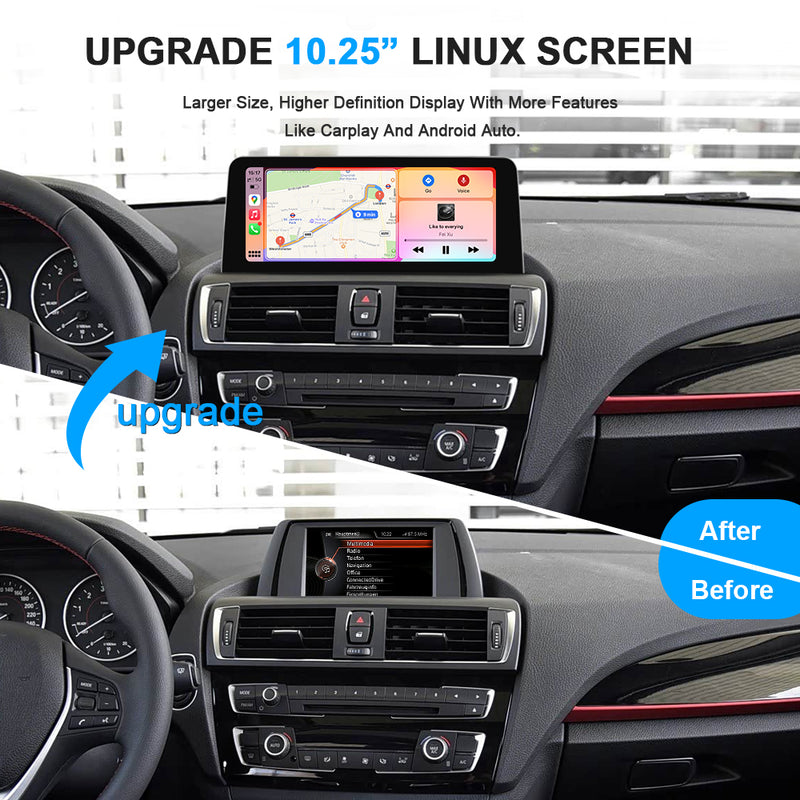

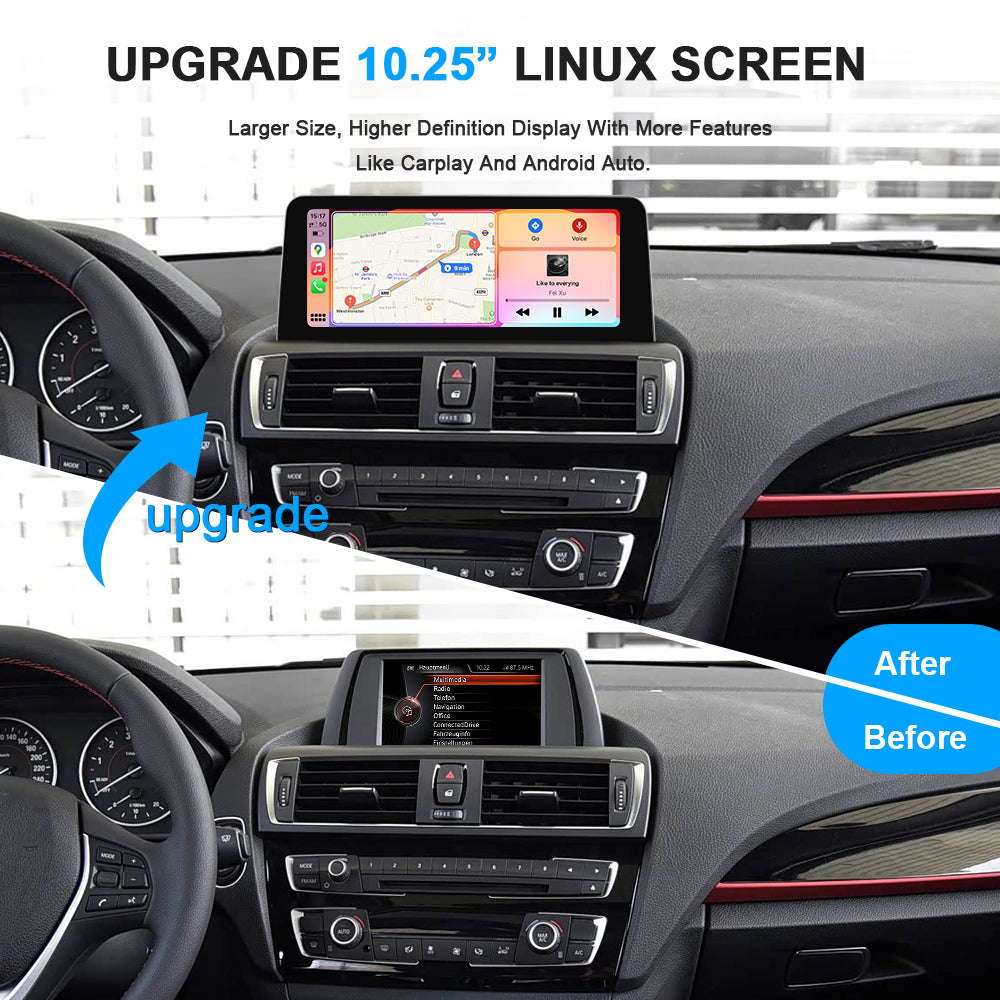

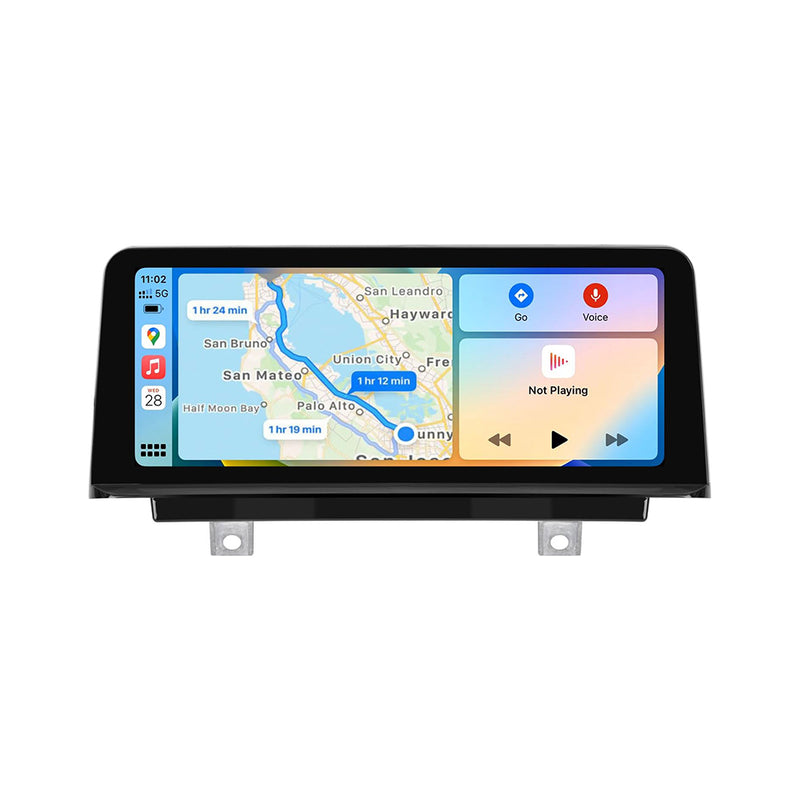

PEMP (9211) for BMW 1 2 Series F20 F22 F23 NBT CIC Wired and Wireless Apple CarPlay Retrofit Android Auto，1920 x 720 Display Mirror Link Car Radio Bluetooth Video Player Screen (2011-2016)

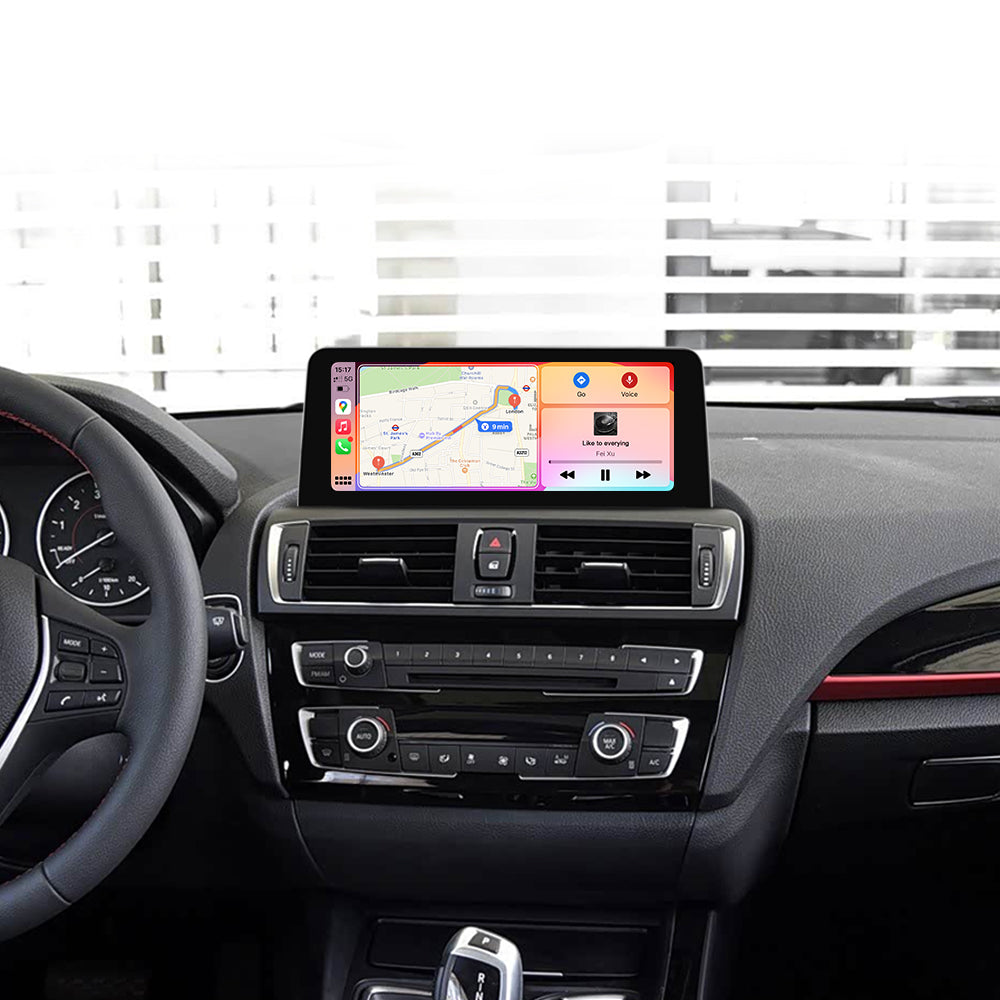

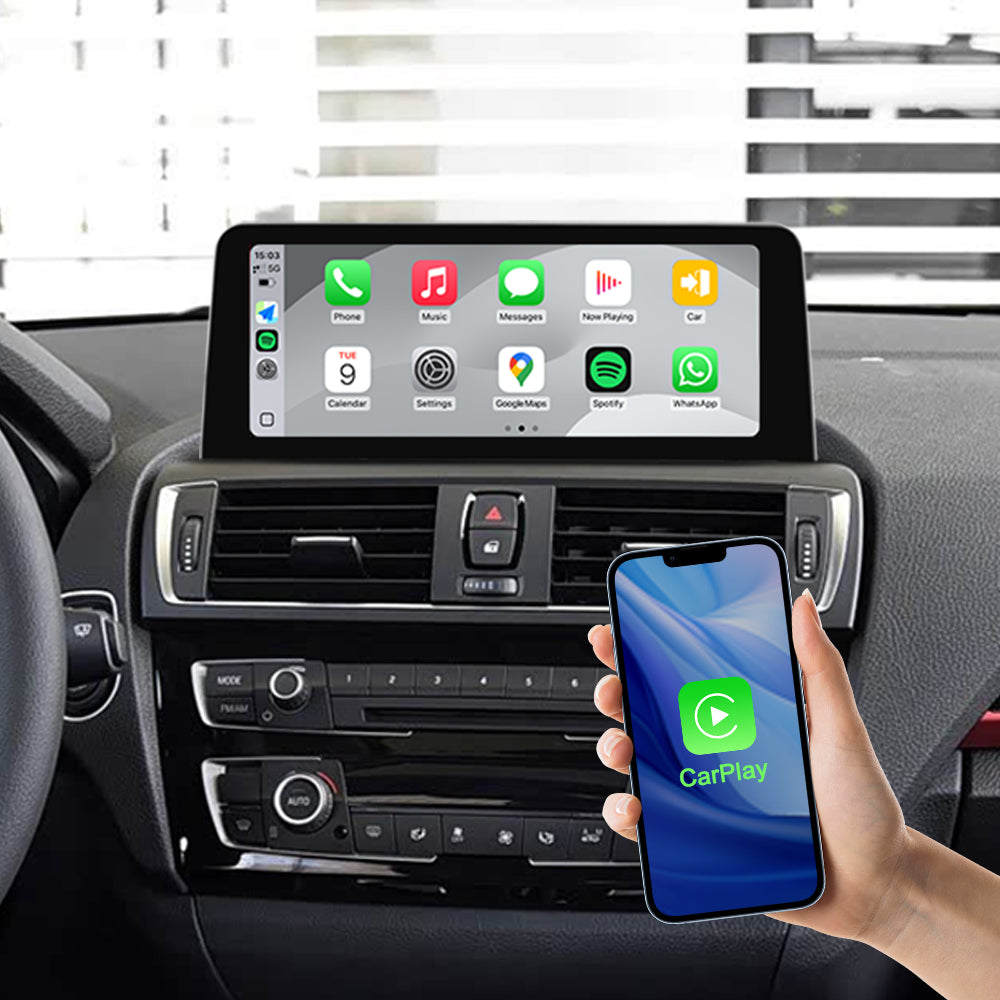

Built-in Wired And Wireless Carplay
You can use Apple Maps, iTunes, Spotify Music and other apps on your phone.

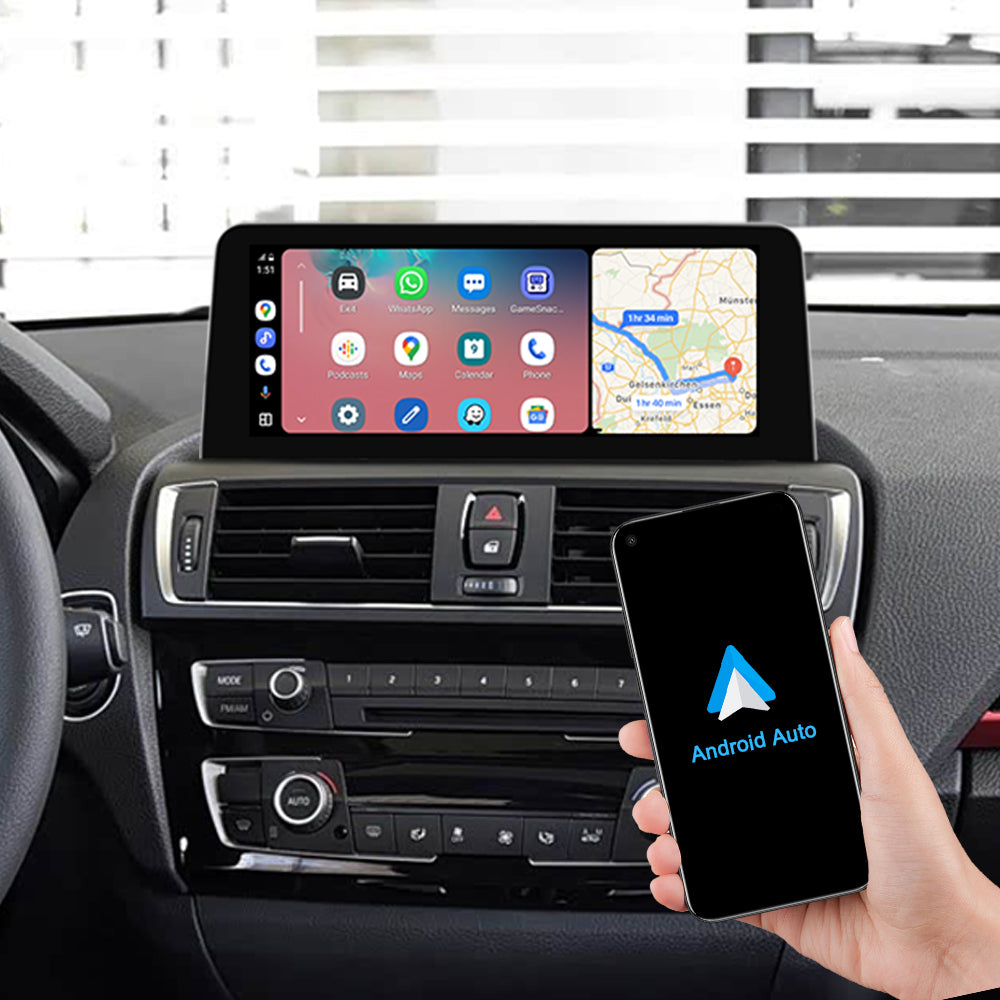

Built-in Wired And Wireless Android Auto
You can use Google Maps, Spotify Music and other apps on your phone

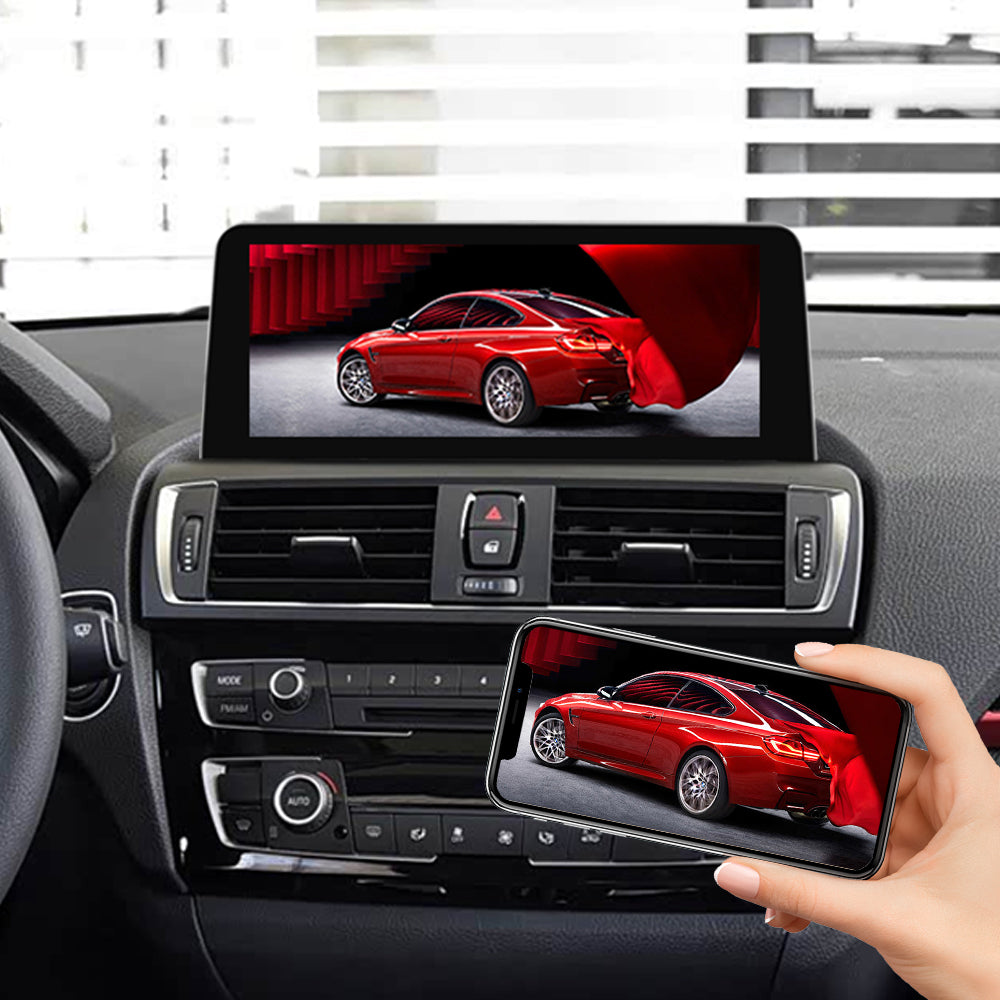

Built-in Wired And Wireless Mirror link
You can mirror pictures or videos from your phone to your Android display through the Mirror Link program.

How are we different?

Piano Lacquer Process
The frame is made of piano lacquer, which is wear-resistant and provides better visibility.

Black Background Crafts
Using the close-fitting process, there is 0 distance between the display screen and the touchpad. The background is darker when the screen is off; the colors are more realistic when the screen is on!

1MM Frame
The frame is only 1MM, which increases the viewing area of the display.

Solutions To Sound Distortion
After installing the PEMP Screen, if Carplay or Android auto sound distortion occurs, you need to connect plugs GROUND A and GROUND B

Use the OEM Bluetooth to Calling in CarPlay Android auto
If your car has the OEM Bluetooth, Please use the original Bluetooth to make calls when using CarPlay and Android Auto. No echo and high quality sound.

Automatic And Manual Aux Switching Settings
1. You can set auto AUX mode, when switch to CarPlay or Android auto, the sound will be switched automatically. Please select the correct factory host brand（Harman or Alpine).

2. You can also store the AUX mode in the 8 button, and every time you press the 8 button before entering a new system, you can get the sound of Carplay or Android auto.

Need Use The Usb In1 Connect The Wired Function
Be sure to use USB IN 1 to connect the wired CarPlay Android auto and Mirror link function.

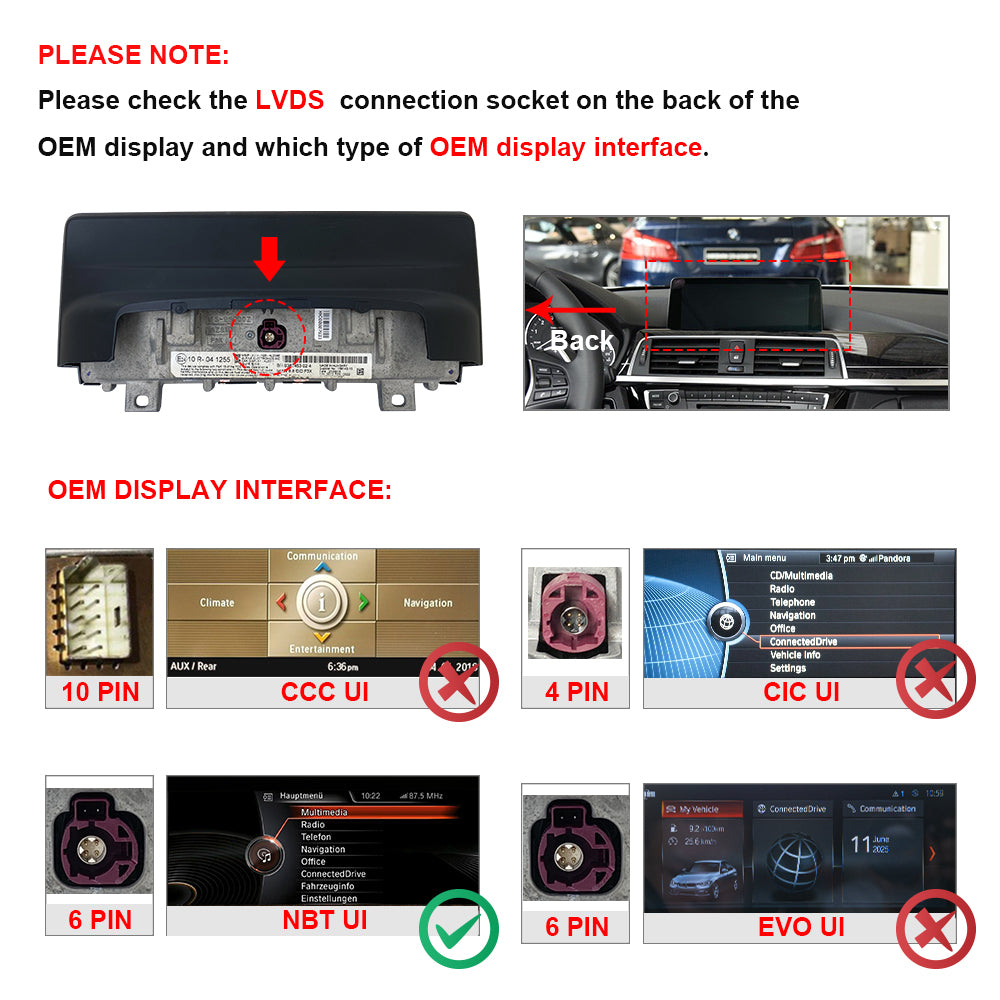

Set The Oem Resolution
Please select the correct resolution for the OEM display within the settings, otherwise the OEM Car INFO may not display properly.

Setup>Car Settings> Original Car's Screen Resolution> Select the item

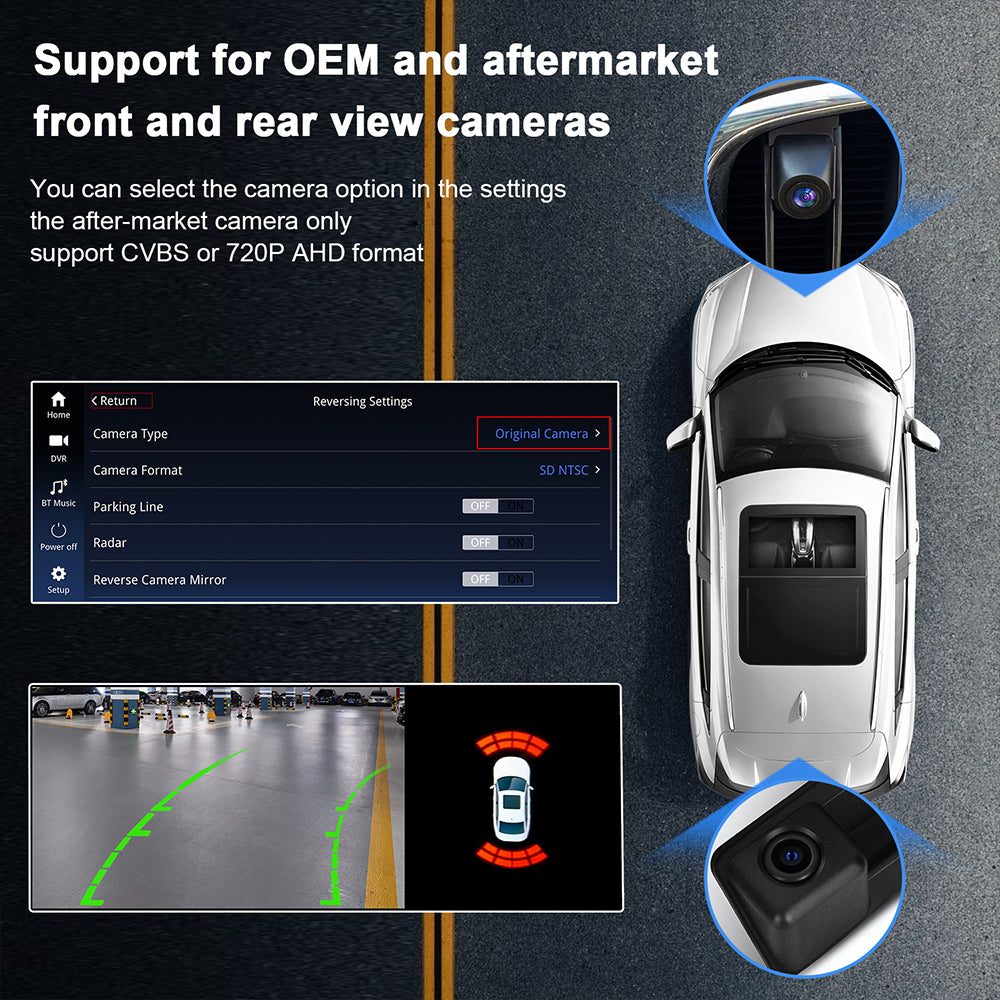

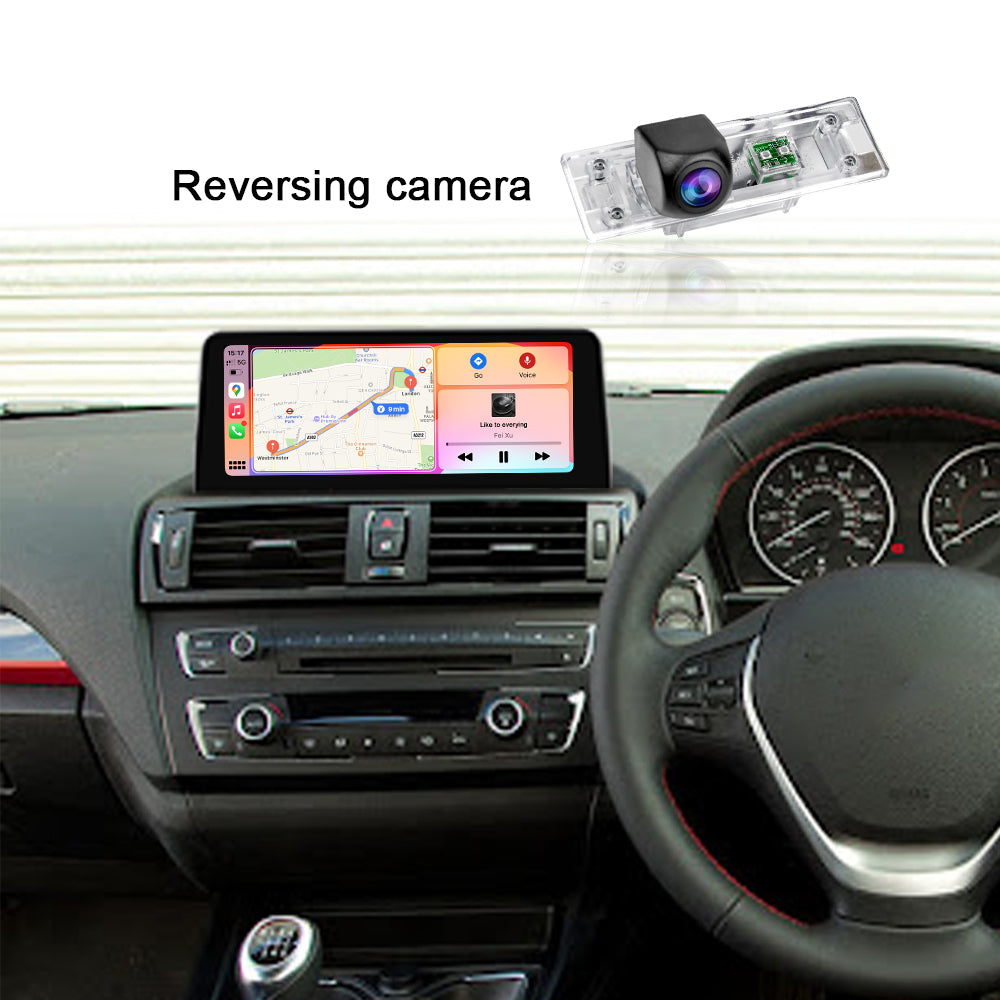

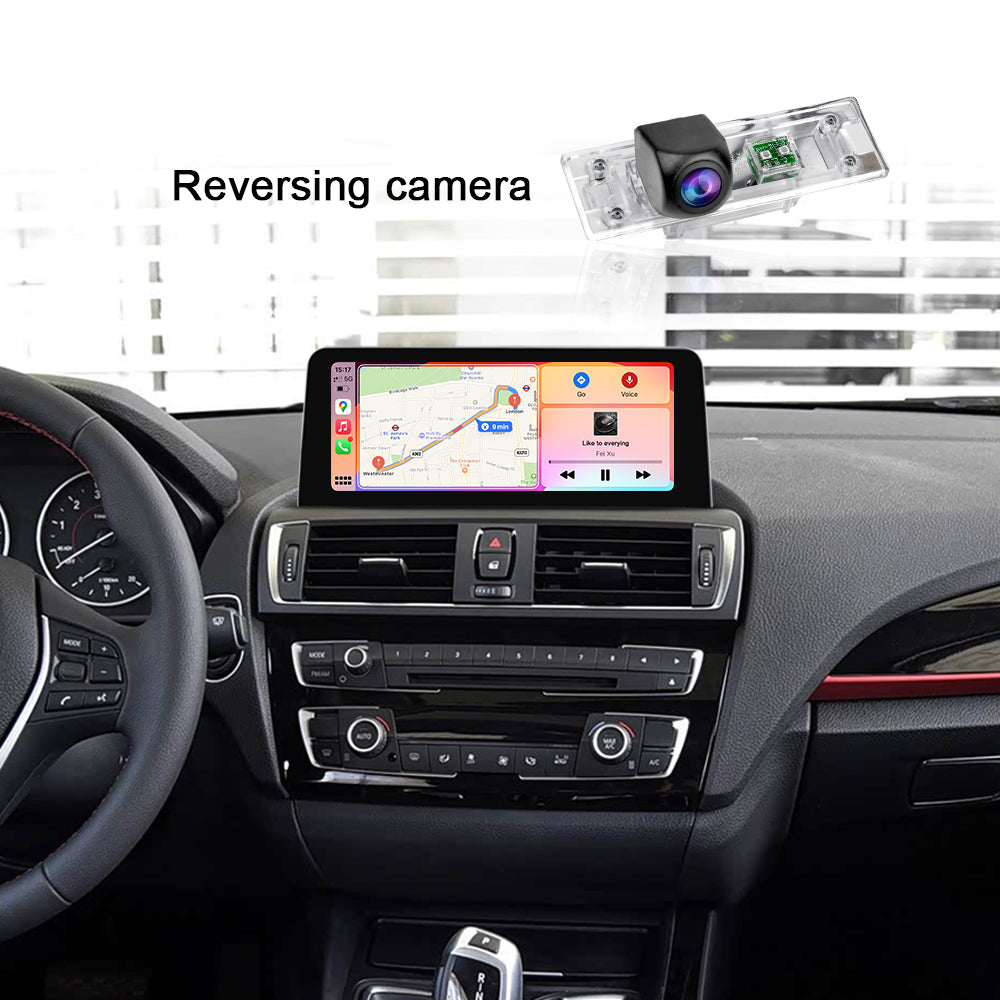

Support The Oem Or After-Market Camera
Please select the correct camera option within Settings, Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.

Move The Original Host Fiber Optic Cable To The New Harness
If your OEM radio has a fiber optic cable above the power harness, Pls move it to the new harness. Otherwise you can't get the car information and the CarPlay sound. And it will be accompanied by a heartbeat wheezing sound.

Please Connect The Audio Harness To The Armrest Box Aux In Connector
If you have properly adapted the fiber optic harness and selected the AUX menu in the OEM interface, you still can't get CarPlay or Android auto sound. Be sure to connect the audio cable between the armrest box AUX IN and AUDIO OUT.
