PEMP (9625) Ultra-Thin 12.3" Linux Screen, for BMW X5 E70 E71 CIC Wireless and Wired CarPlay Android Auto Calls Using The OEM Microphone Monitor

Built-in Apple CarPlay
Support the wired and wireless Apple CarPlay

Built-in Android Auto
Support the wired and wireless Android auto

Built-in Mirror Link
Support the wired and wireless Mirror Link Function

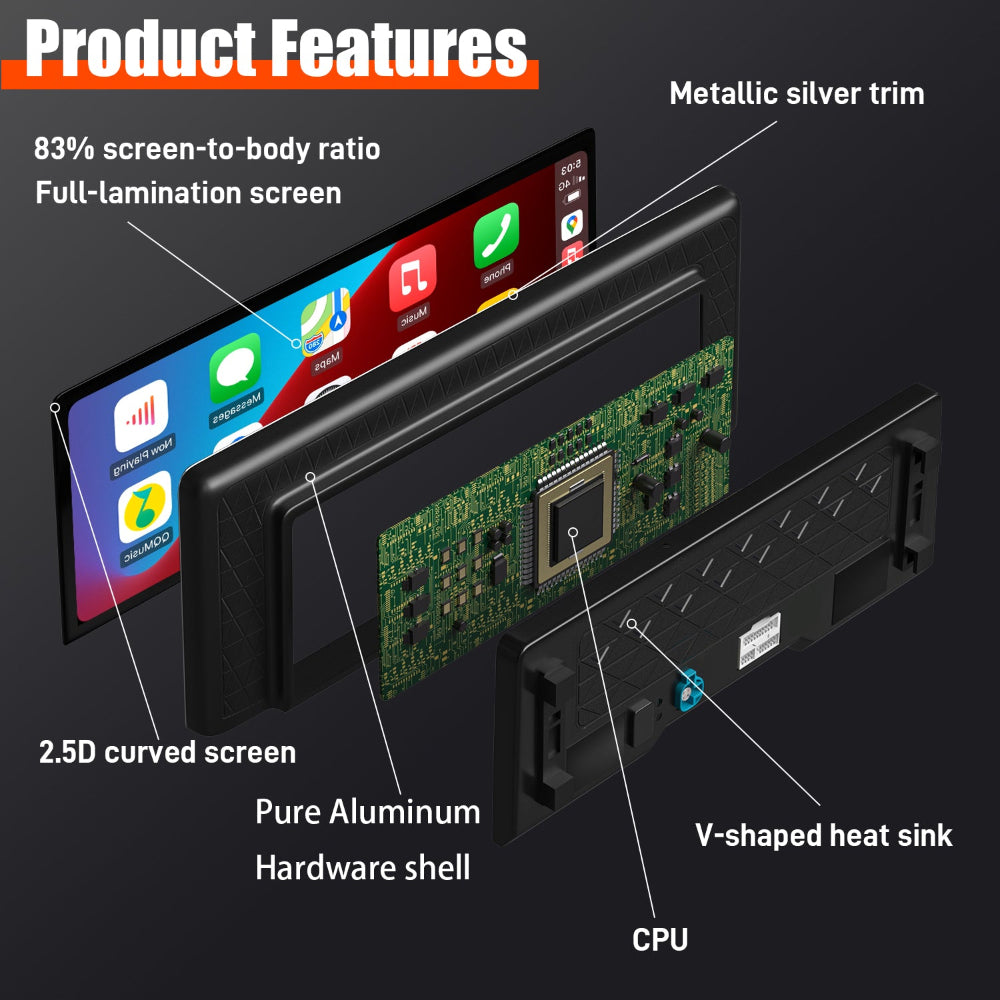

Metal Casing and Ultra-thin Panel
1. 13MM ultra-thin panel design, aluminum alloy material shell.

2. Narrow bezel process, screen ratio up to 82.3%.

12.3" Big Android Screen
Features a 12.3” IPS display. Wide viewing angle up to 170 degrees.

HD Resolution
High Resolution up to 1920X720RGB

High Screen-to-body Ratio
82.3% screen-to-body ratio using narrow bezels

0-pitch full lamination process and 2.5D touch screen
1. Adopting airless 0-pitch laminating process, the image is more realistic.

2. Using 2.5D touch screen edge processing. Smoother touch.

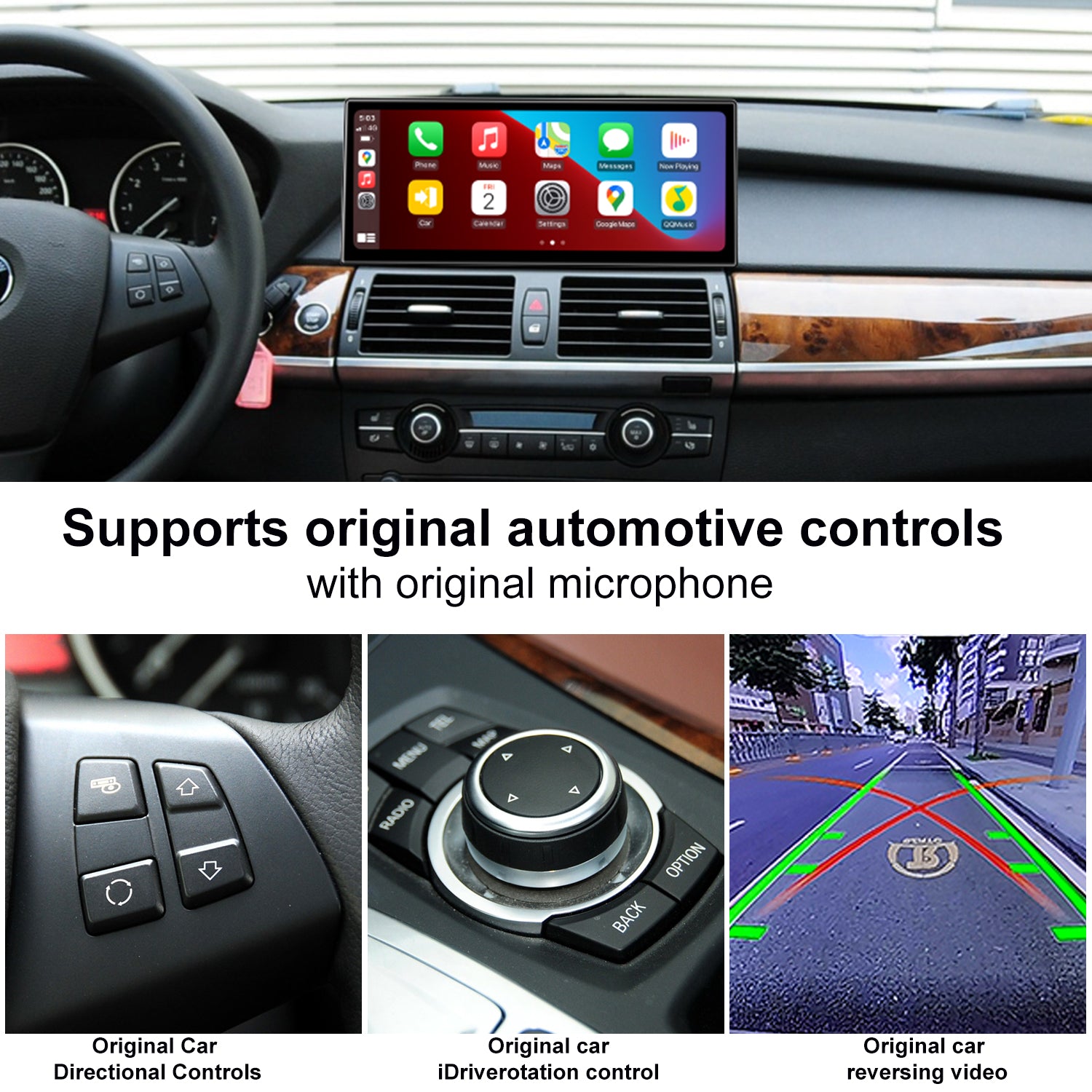

Support original steering wheel and button control.
You can use the original steering wheel and knob to control the Android system. Note that F10 F01 does not support steering wheel pulley up and down control.

Support the OEM Camera
You can make the OEM camera work with the Android screen by selecting the OEM Camera option within the settings.

Solutions To Sound Distortion
After installing the PEMP Screen, if Carplay or Android auto sound distortion occurs, you need to connect plugs GROUND A and GROUND B

Use the OEM Bluetooth to Calling in CarPlay Android auto
If your car has the OEM Bluetooth, Please use the original Bluetooth to make calls when using CarPlay and Android Auto. No echo and high quality sound.

Need Use The Usb In1 Connect The Wired Function
Be sure to use USB IN 1 to connect the wired CarPlay Android auto and Mirror link function.

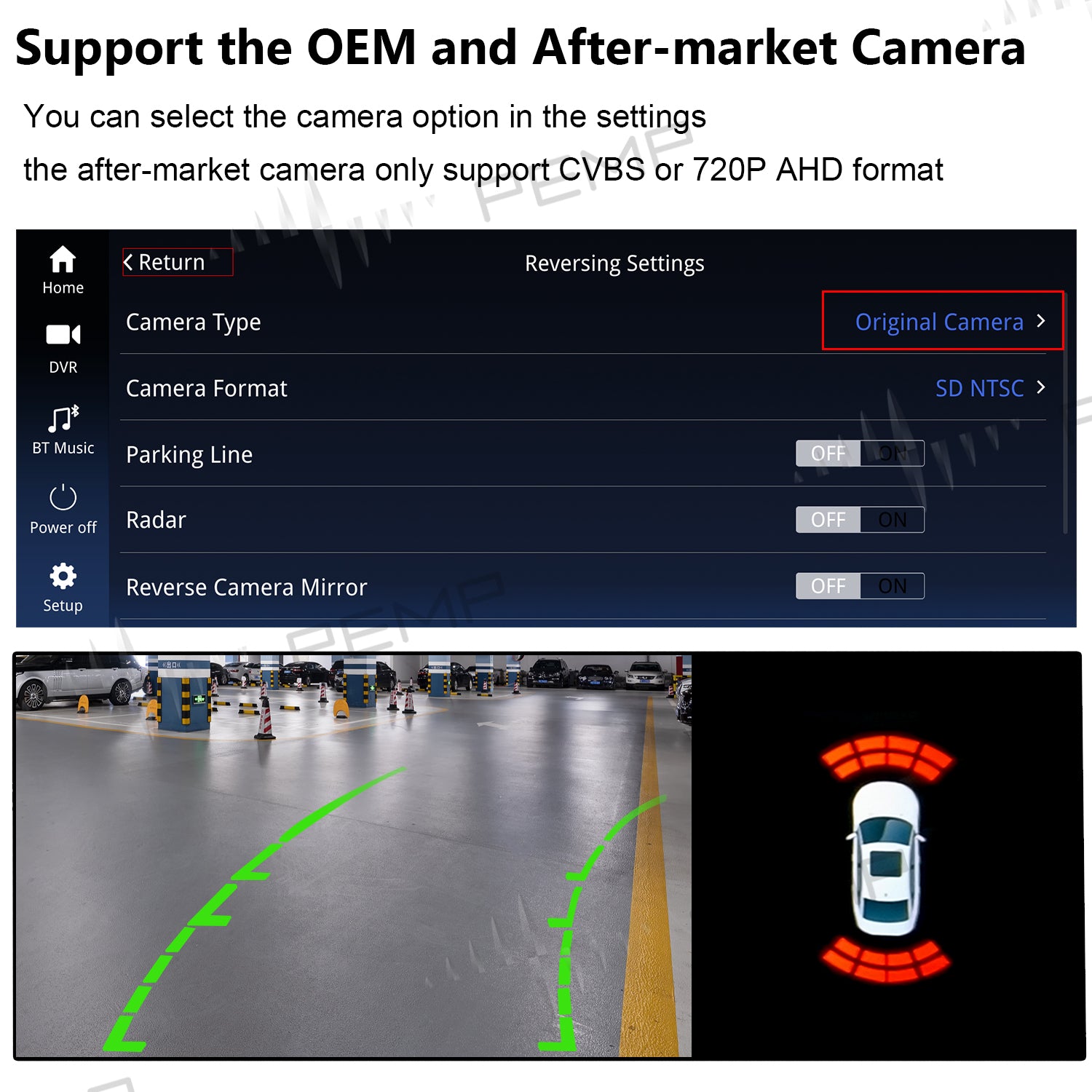

Support The Oem Or After-Market Camera
Please select the correct camera option within Settings, Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.

Set The Oem Resolution
Please select the correct resolution for the OEM display within the settings, otherwise the OEM Car INFO may not display properly.

Setup>Car Settings> Original Car's Screen Resolution> Select the item

Moving the stock 2 green fiber optic wires to the android harness.
Be sure to move the stock 2 green fiber optic wires to the Linux harness. Otherwise the maintenance information will not show up and you will not get the Linux sound.

Connect the audio cable between the Linux screen audio output and the car's AUX IN
You need to connect the audio cable between the Linux screen audio output and the car's AUX IN if necessary. Only then you can get the sound of Linux.

Product Features:
1. Using Ultra-thin process, the screen-to-body ratio reaches 82.3%, 12.3" large Android display; metal material shell and Non-Airgap process, the picture quality image is more realistic.
2. Supports wireless and wired CarPlay and Android Auto, you can use the original car microphone to make calls when using CarPlay and Android Auto. No echo and high quality sound.

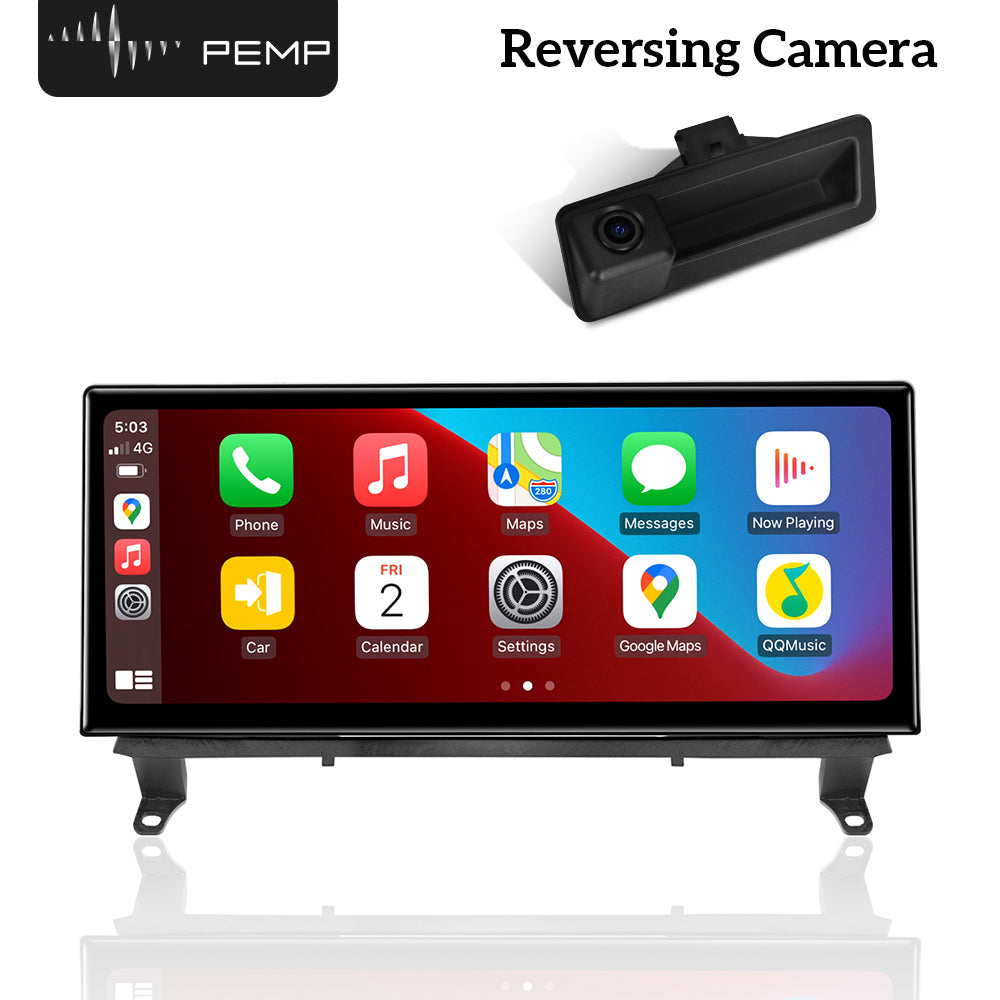

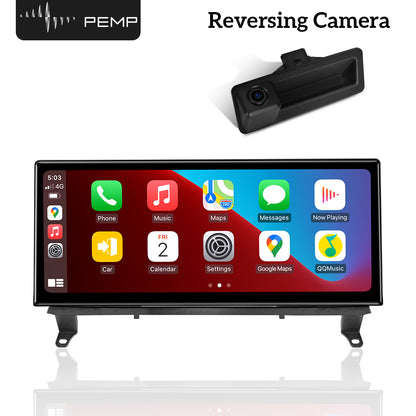

3. Support The OEM Camera and PEMP AHD Reversing Camera (Asin: B08YWL8CND) & front Camera (ASIN:B09TLCVYRB). The Reversing Picture Will Be Very Clear.
