PEMP (9615) Ultra-Thin 12.3" Linux Screen, for BMW X5 E70 E71 CCC Wireless and Wired CarPlay Android Auto Calls Using The OEM Bluetooth.
PEMP (9615) Ultra-Thin 12.3" Linux Screen, for BMW X5 E70 E71 CCC Wireless and Wired CarPlay Android Auto Calls Using The OEM Bluetooth.
Couldn't load pickup availability
How are we different?
Built-in Wired/wireless Carplay/Android Auto/Mirror Link for bmw E70 CCC
Wired CarPlay/Android Auto/Mirror Link need connect the USB IN 1.

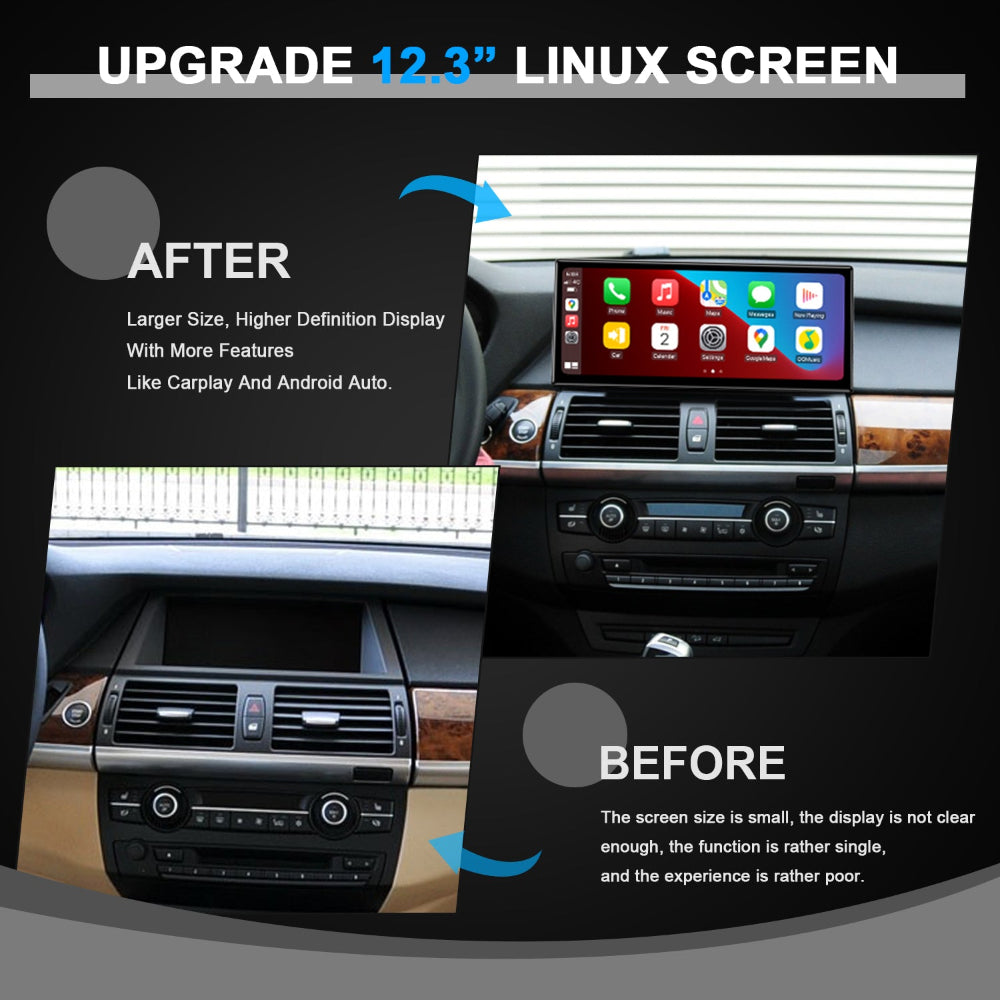

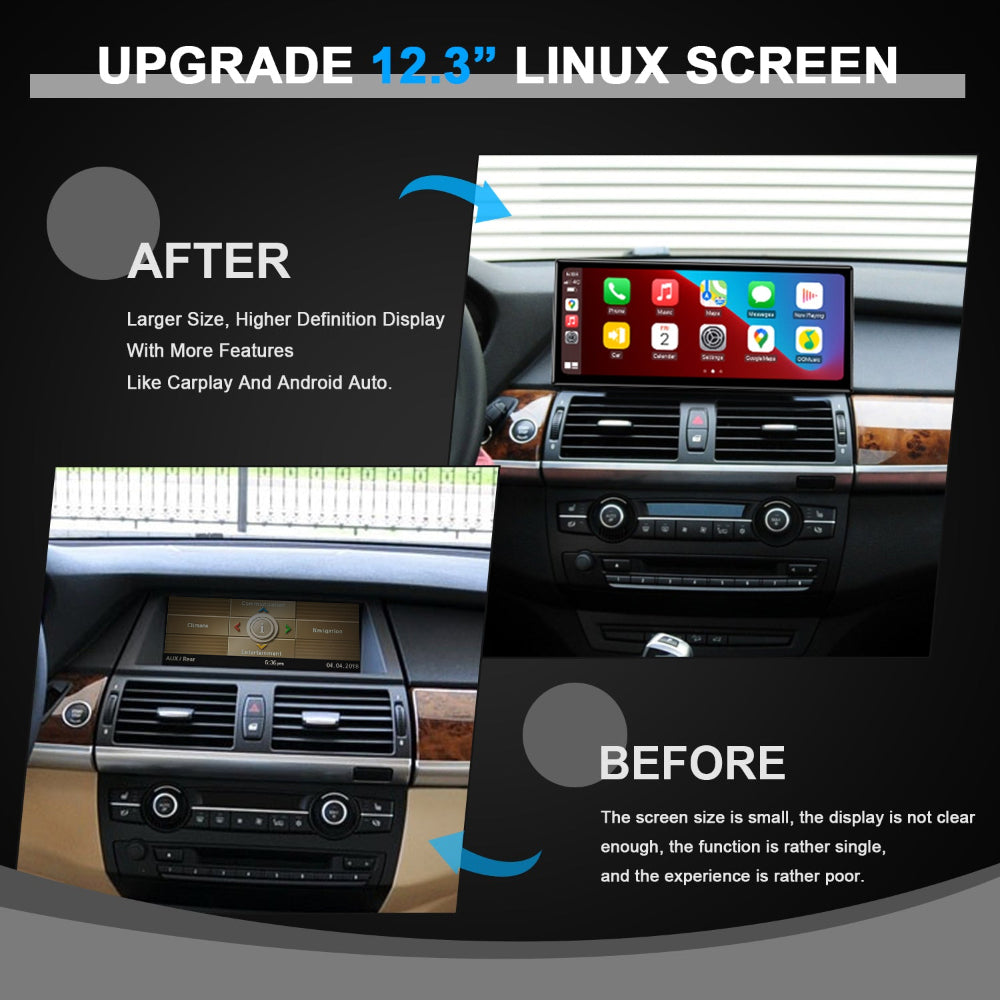

12.3" Big Linux Screen: Features a 12.3” IPS display. Wide viewing angle up to 170 degrees.

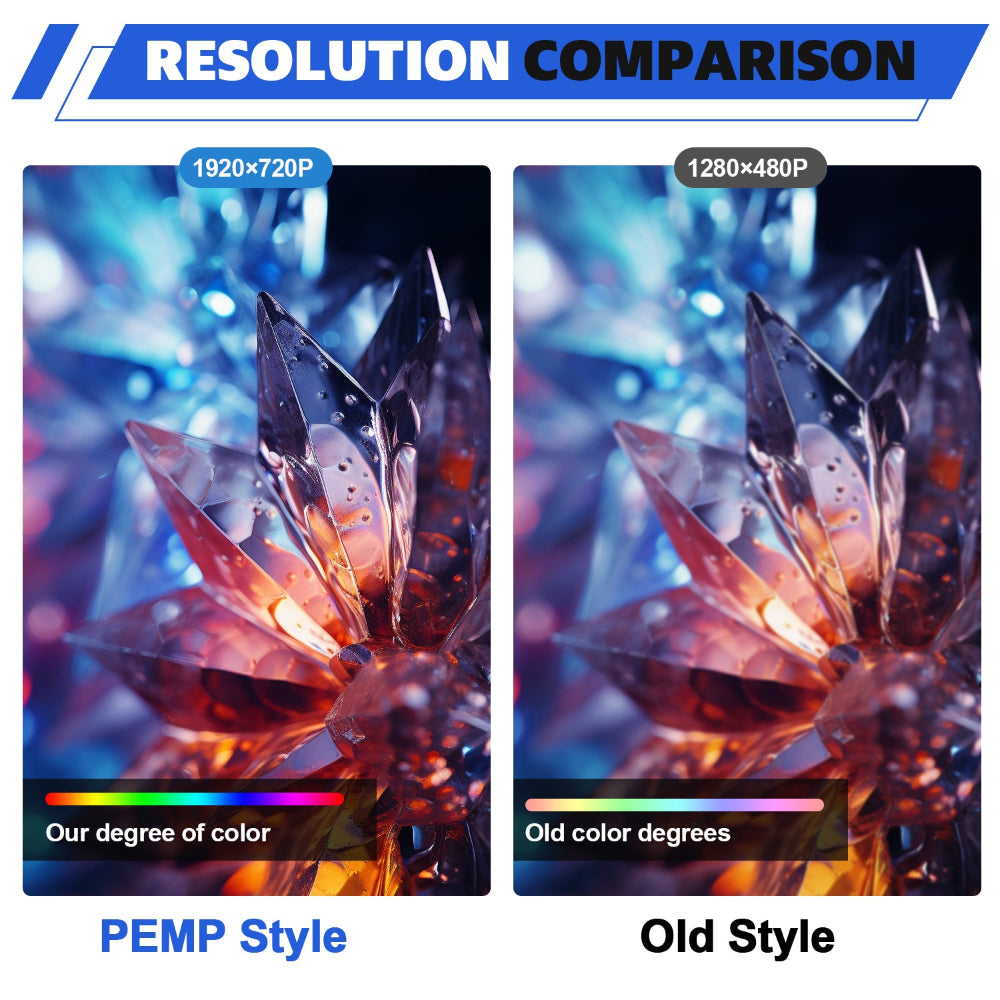

HD Resolution: High Resolution up to 1920X720RGB
High Screen-to-body Ratio: 82.3% screen-to-body ratio using narrow bezels
Unique centered design
In order to meet the needs of users, we not only made the screen ultra-thin, but also centered the screen and made the storage compartment on the right side of the screen can be opened and closed normally.
Move the original host fiber optic cable to the Linux harness
If your OEM radio has a fiber optic cable above the power harness, Pls move it to the Linux harness. Otherwise you can't get the car information and the Linux sound. And it will be accompanied by a heartbeat wheezing sound.
Solutions to sound distortion
1. When you encounter sound distortion, please connect ground A and ground B.
2. Linux screen does not need to install 4G and GPS antenna.

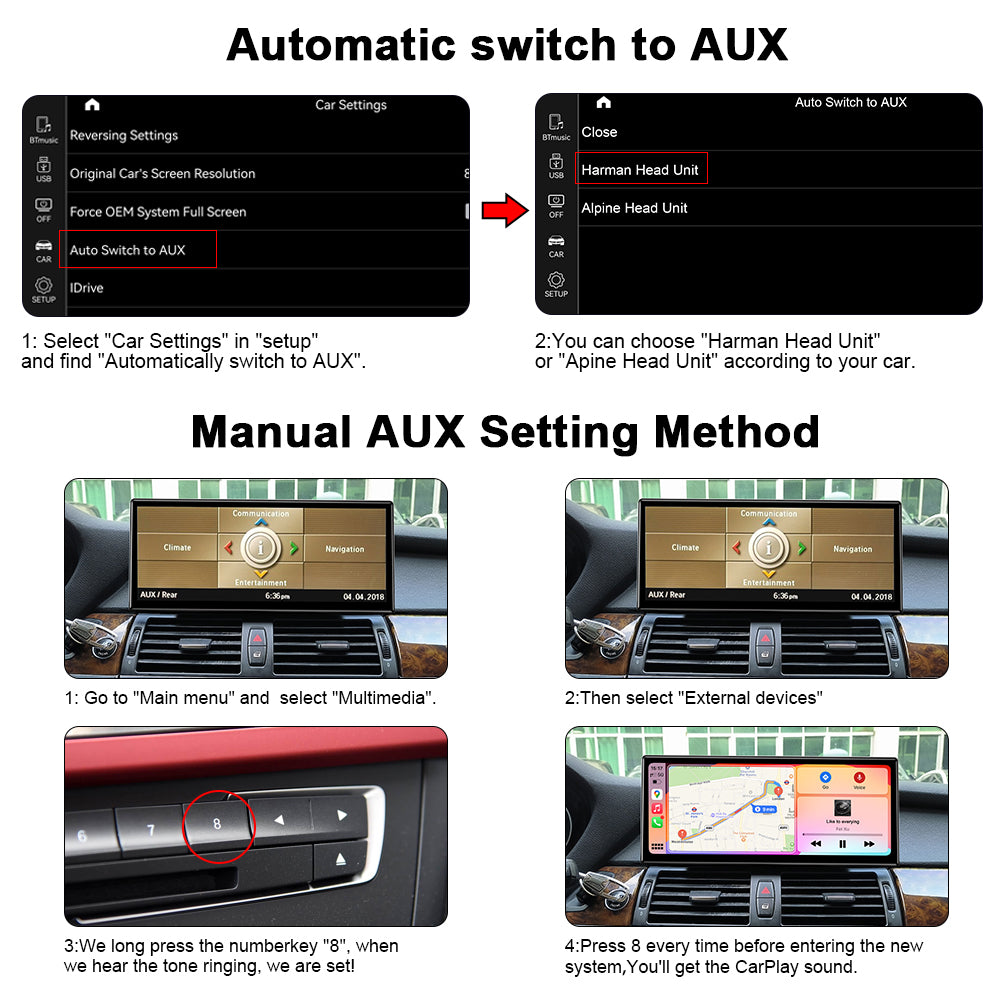

Automatic and manual AUX switching settings
You can also store the AUX mode in the 8 button, and every time you press the 8 button before entering a new system, you can get the sound of Carplay or Android auto.
Need use the USB IN1 Connect the Wired Function
Be sure to use USB IN 1 to connect the wired CarPlay Android auto and Mirror link function.
Set the OEM Resolution
Please select the correct resolution for the OEM display within the settings, otherwise the OEM Car INFO may not display properly.
Setup>Car Settings> Original Car's Screen Resolution> Select the item

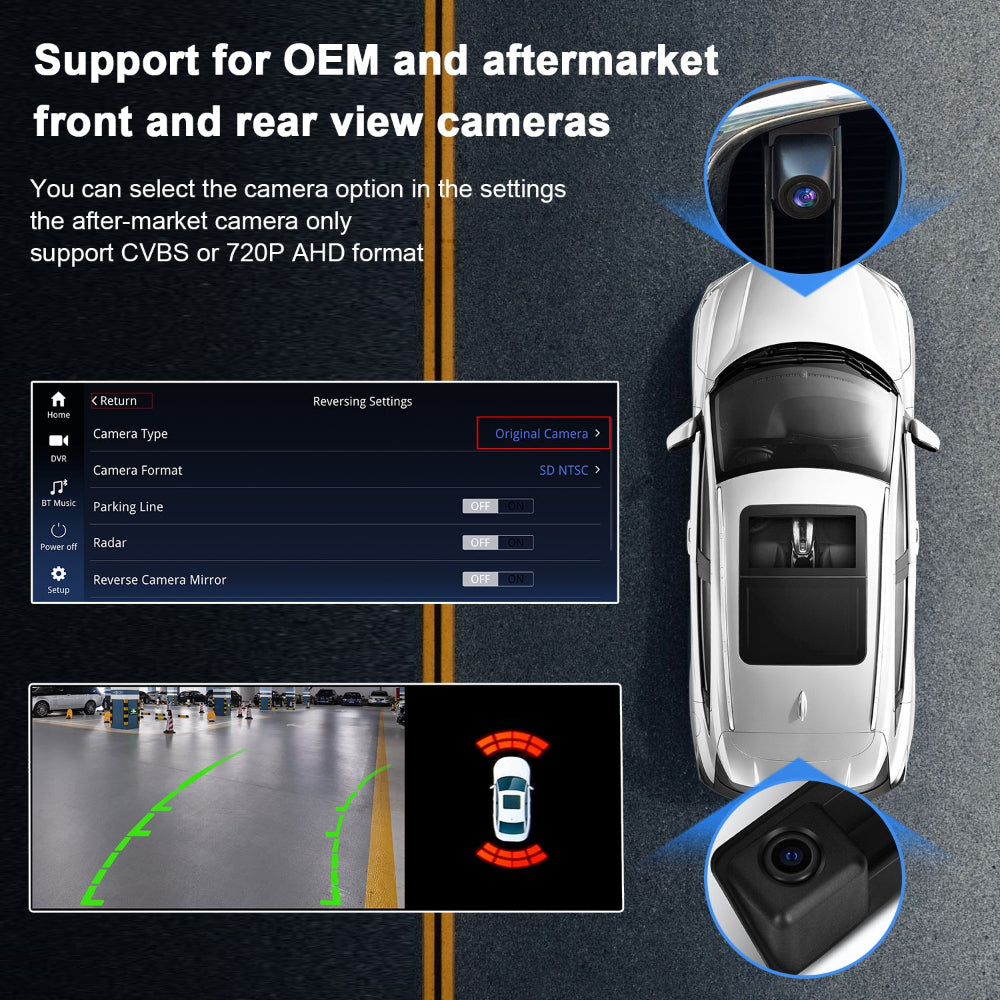

Support the OEM or after-market Camera
Please select the correct camera option within Settings, Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.
Product Features:

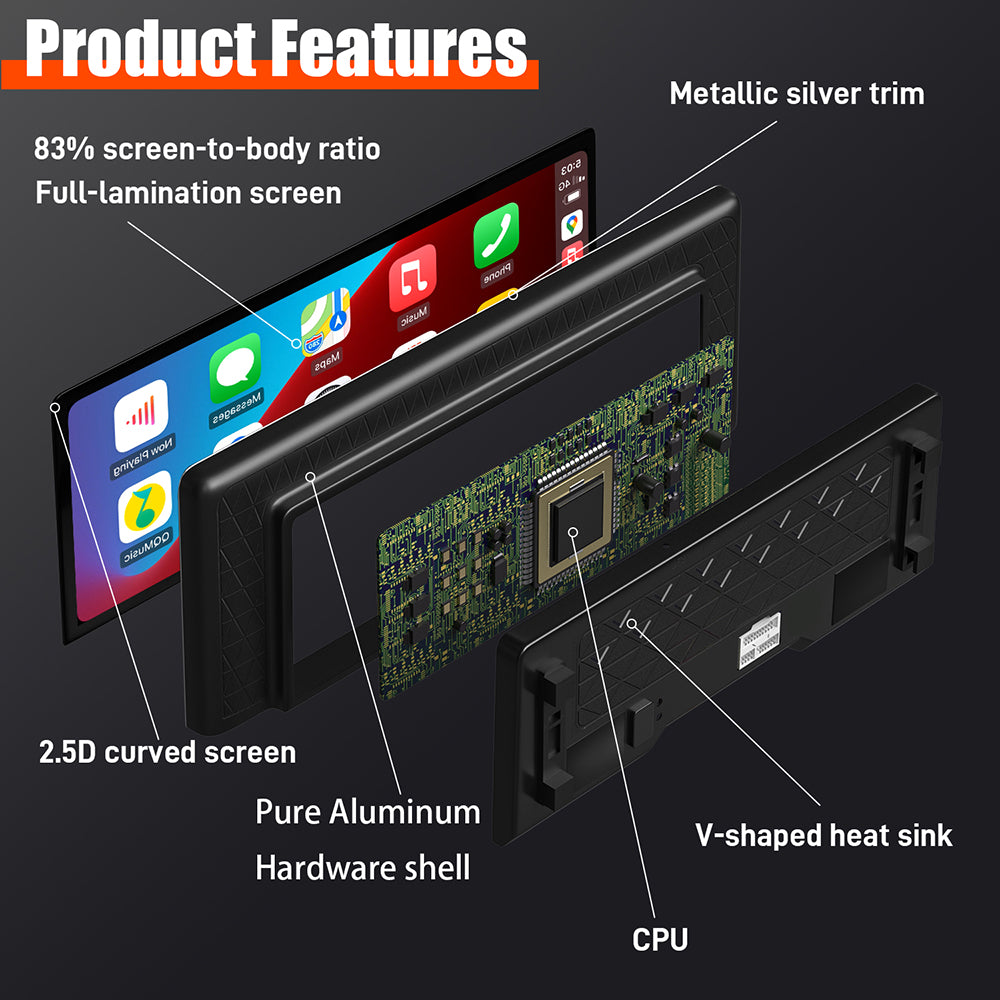

1. Using Ultra-thin process, the screen-to-body ratio reaches 82.3%, 12.3" large display; metal material shell and Non-Airgap process, the picture quality image is more realistic. Only suitable for BMW E70 E71 X5 X6 CIC original 4PIN LVDS system.
2. Support Wired and Wireless CarPlay and Android Auto for BMW E70 E71 , You Can Answer CarPlay or Android Auto Phone Call by Steering Wheel Button.
3.1920*720 HD Display with Capacitive Touch Function; Support Car's Knob to Control CarPlay or Android Auto Interface; Support Playing Music and Video Via USB.

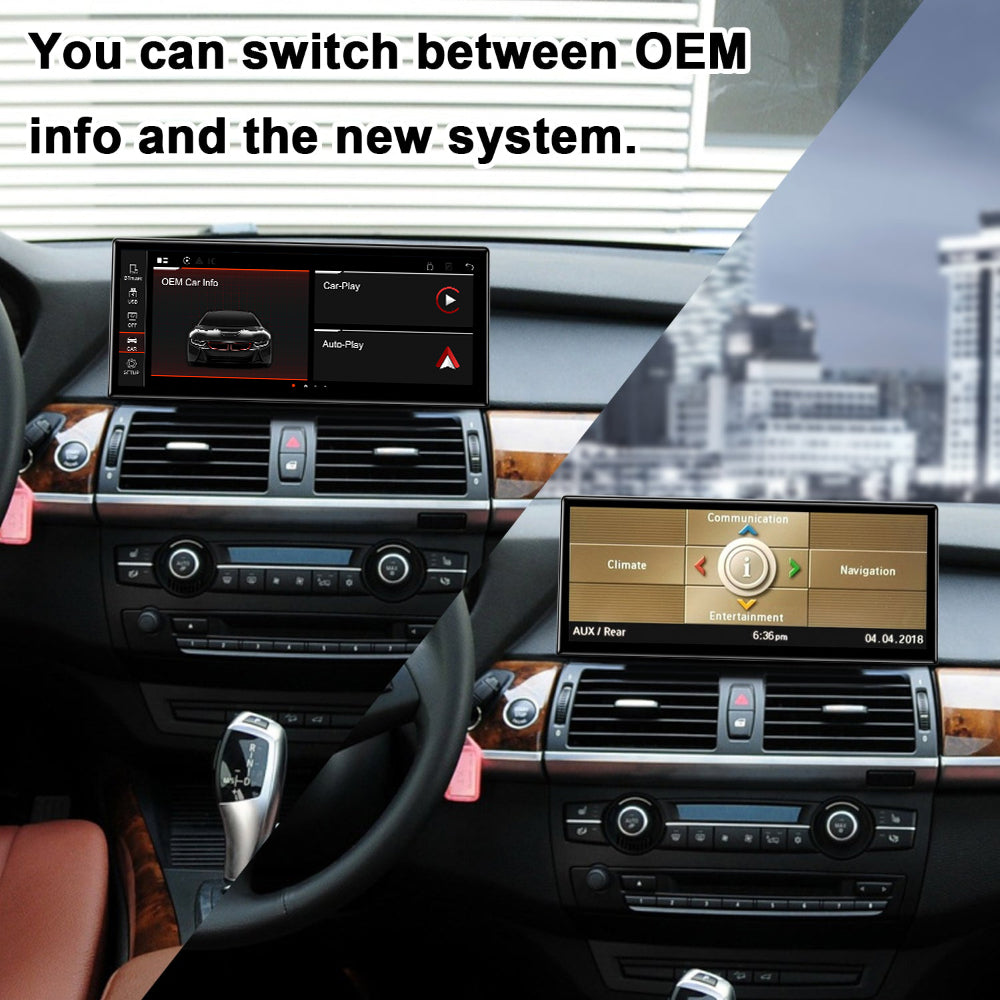

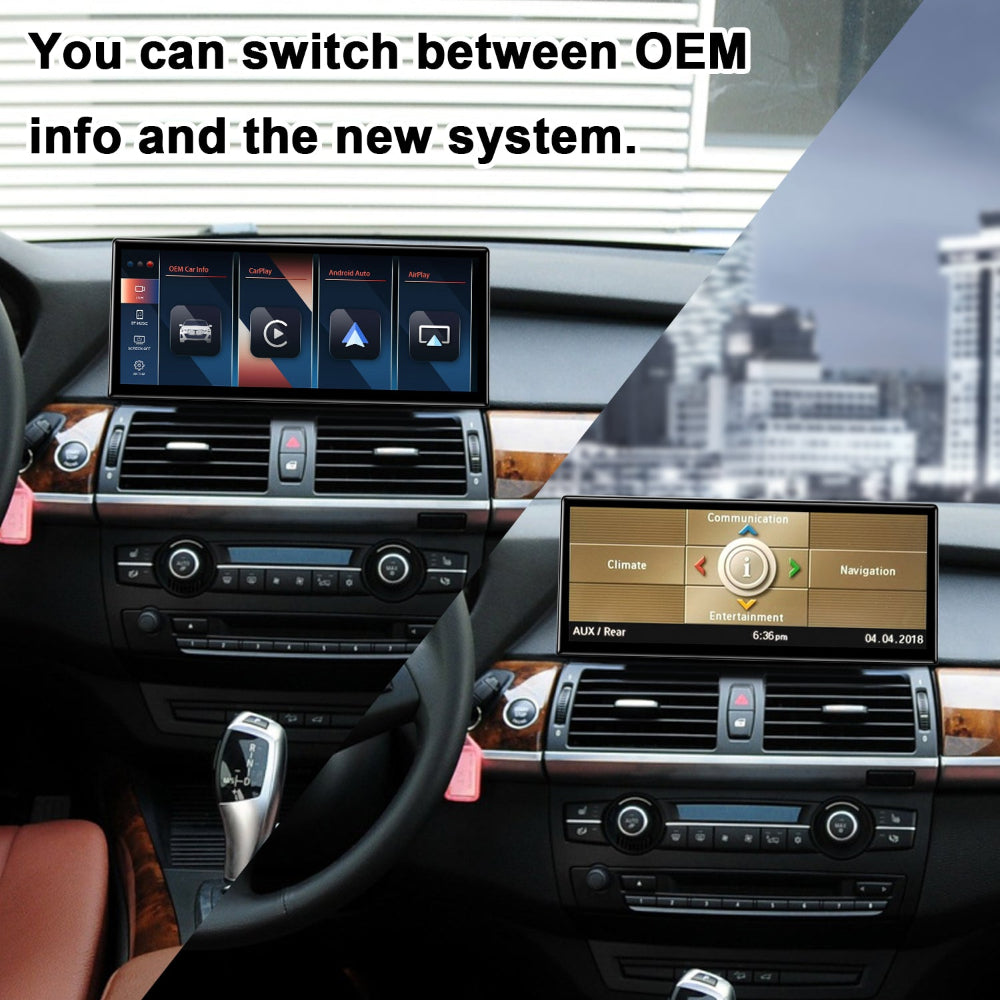

4.Support Factory Monitor Information Display; You Can Long Press Menu Button to Switch Between Factory OEM Interface and CarPlay Interface; Support Steering Wheel Button Function.
5.Support The OEM Camera and after market Camer & front Camera (720P or Less). The Reversing Picture Will Be Very Clear.
6.With Linux System, You Can Get CarPlay or Android Auto Interface Quickly; In 2 Seconds You Can Get Reverse Camera Video.
How to install BMW E70 E71 12.3" Ultra-Thin Screen
