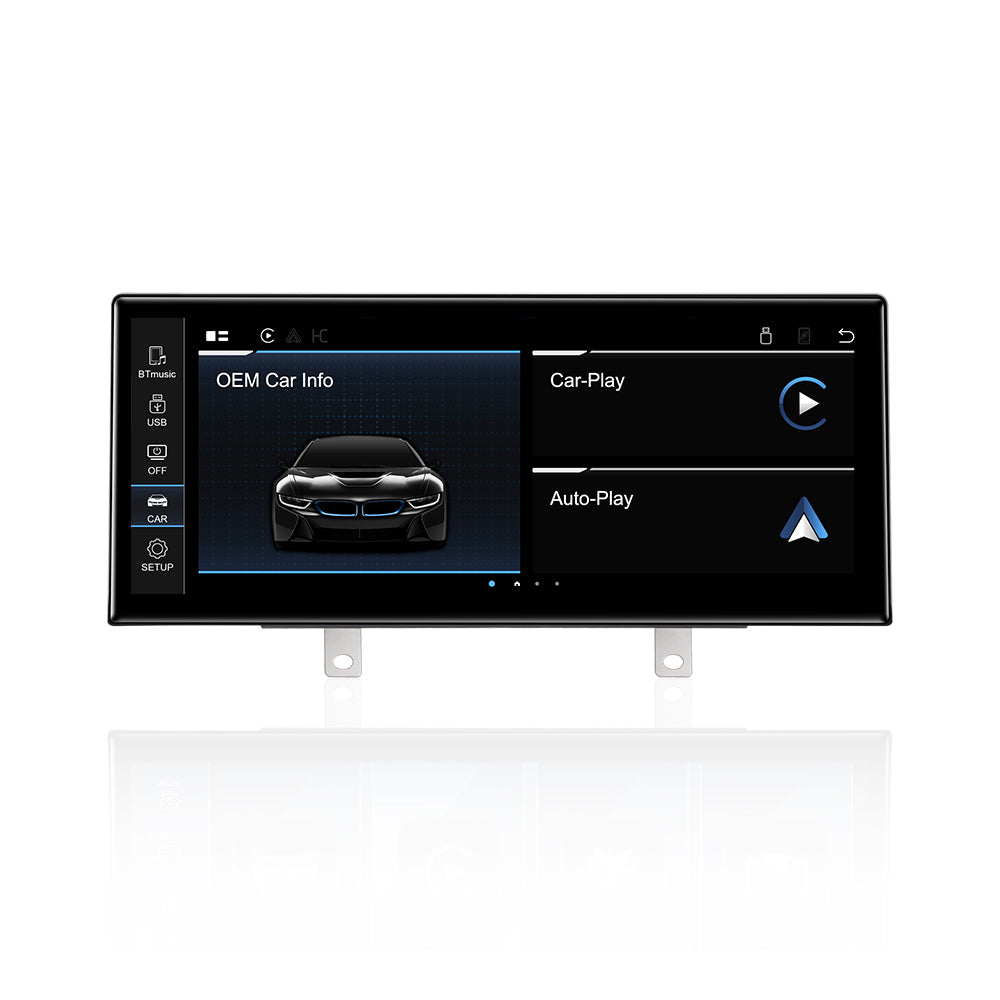

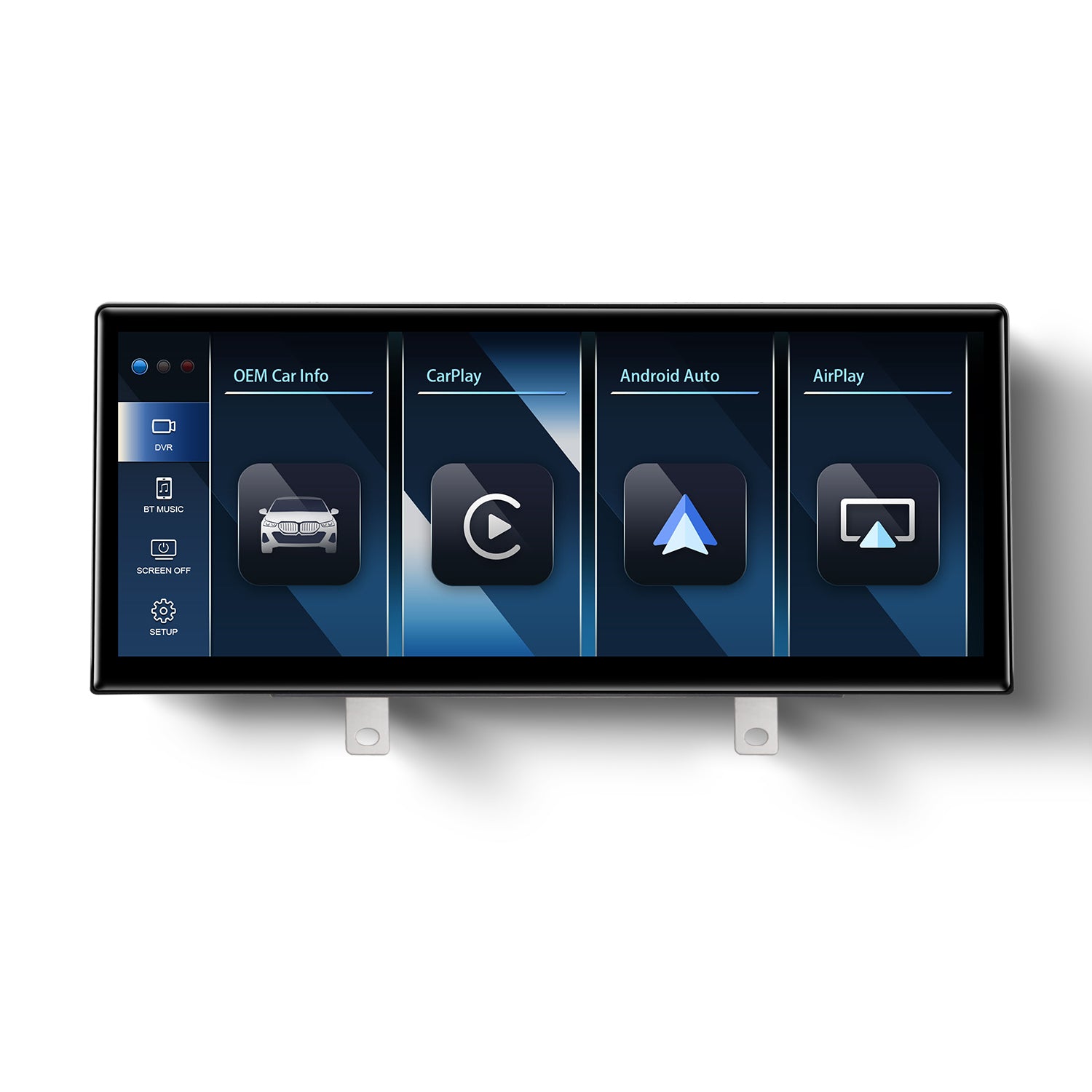

PEMP (9613) Ultra-Thin Linux 12.3" Screen for BMW F30 F31 F32 F33 F34 F35 NBT CIC Wired and Wireless Apple CarPlay Retrofit Android Auto use The OEM Bluetooth (2012-2017)

Featured Functions
Built-in Apple CarPlay, Android Auto, Mirror Link.

Support the wired and wireless Apple CarPlay/Android Auto,/Mirror Link.

Use CARPLAY/Android Auto/Mirror Link USB for wired connections.

82.3% screen-to-body ratio using narrow bezels.

Linux Screen Features a 12.3” Big IPS display. Wide viewing angle up to 170 degrees.

High Resolution up to 1920X720RGB.

Metal Casing and Ultra-thin Panel

1. 13MM ultra-thin panel design, aluminum alloy material shell.

2. Narrow bezel process, screen ratio up to 82.3%.

Unique centered design

Uniquely centered screen on the market for the ultimate screen viewing experience.

Linux screen reverse camera wiring method

Linux on-screen reversing camera Support 720P AHD format

Linux screen front view camera wiring method

The Linux front view camera supports 720P AHD format.

If you want to use both front and rear view camera at the same time, you need to use the one-point-two “CAMERA +12V” wire harness that comes with the front view camera.

0-pitch full lamination process and 2.5D touch screen

1. Adopting airless 0-pitch laminating process, the image is more realistic.

2. Using 2.5D touch screen edge processing. Smoother touch.

Use the OEM Bluetooth to Calling in CarPlay Android auto

If your car has the OEM Bluetooth, Please use the original Bluetooth to make calls when using CarPlay and Android Auto. No echo and high quality sound.

NOTE: This connection can only be used to get music sound when your vehicle has Bluetooth audio capability.

How to get sound using raw  Bluetooth, , search on YouTube: gKqeUAbMyCs

Need use the USB IN1 Connect the Wired Function

Be sure to use USB IN 1 to connect the wired CarPlay Android auto and Mirror link function.

Support the OEM or after-market Camera

Please select the correct camera option within Settings, Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.

Set the OEM Resolution

Please select the correct resolution for the OEM display within the settings, otherwise the OEM Car INFO may not display properly.

Setup>Car Settings> Original Car's Screen Resolution> Select the item

Move the original host fiber optic cable to the new harness

If your OEM radio has a fiber optic cable above the power harness, Pls move it to the new harness. Otherwise you can't get the car information and the CarPlay sound. And it will be accompanied by a heartbeat wheezing sound.

Please connect the audio harness to the armrest box AUX IN connector

If you have properly adapted the fiber optic harness and selected the AUX menu in the OEM interface, you still can't get CarPlay or Android auto sound. Be sure to connect the audio cable between the armrest box AUX IN and AUDIO OUT.

Product Features:
1. Using Ultra-thin process, the screen-to-body ratio reaches 82.3%, 12.3" large Android display; metal material shell and Non-Airgap process, the picture quality image is more realistic.
2. Supports wireless and wired CarPlay and Android Auto, you can use the original car microphone to make calls when using CarPlay and Android Auto. No echo and high quality sound.

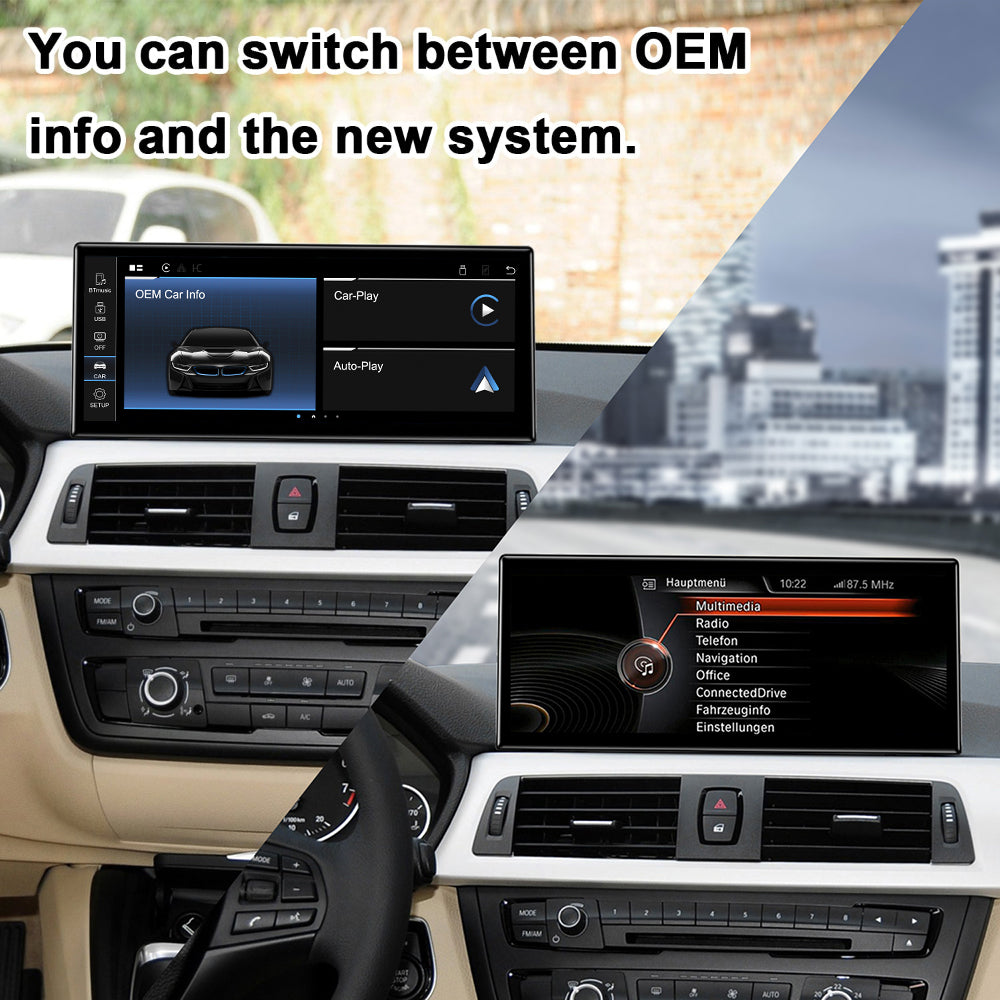

3.  Support Factory Monitor Information Display; You Can Long Press Menu Button to Switch Between Factory OEM Interface and CarPlay Interface; Support Steering Wheel Button Function.
4.With Linux System, You Can Get CarPlay or Android Auto Interface Quickly; In 2 Seconds You Can Get Reverse Camera Video.
5. Support The OEM Camera and after market Camer & front Camera (720P or Less). The Reversing Picture Will Be Very Clear.

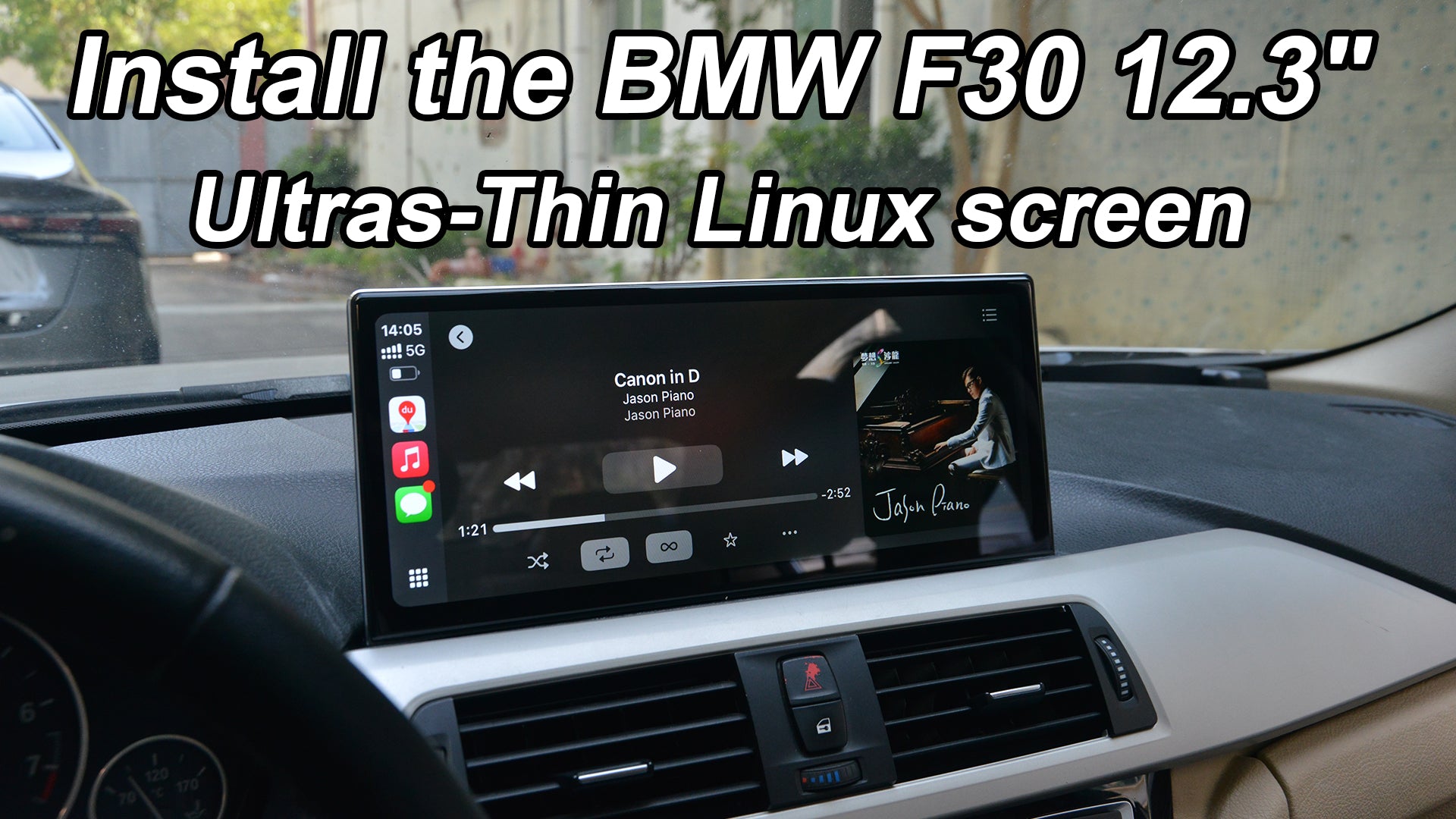

How to install BMW F30 12.3" Ultra-Thin Screen

https://youtu.be/U5dZrtSmW3M?si=PwOKWztsKoybItTT

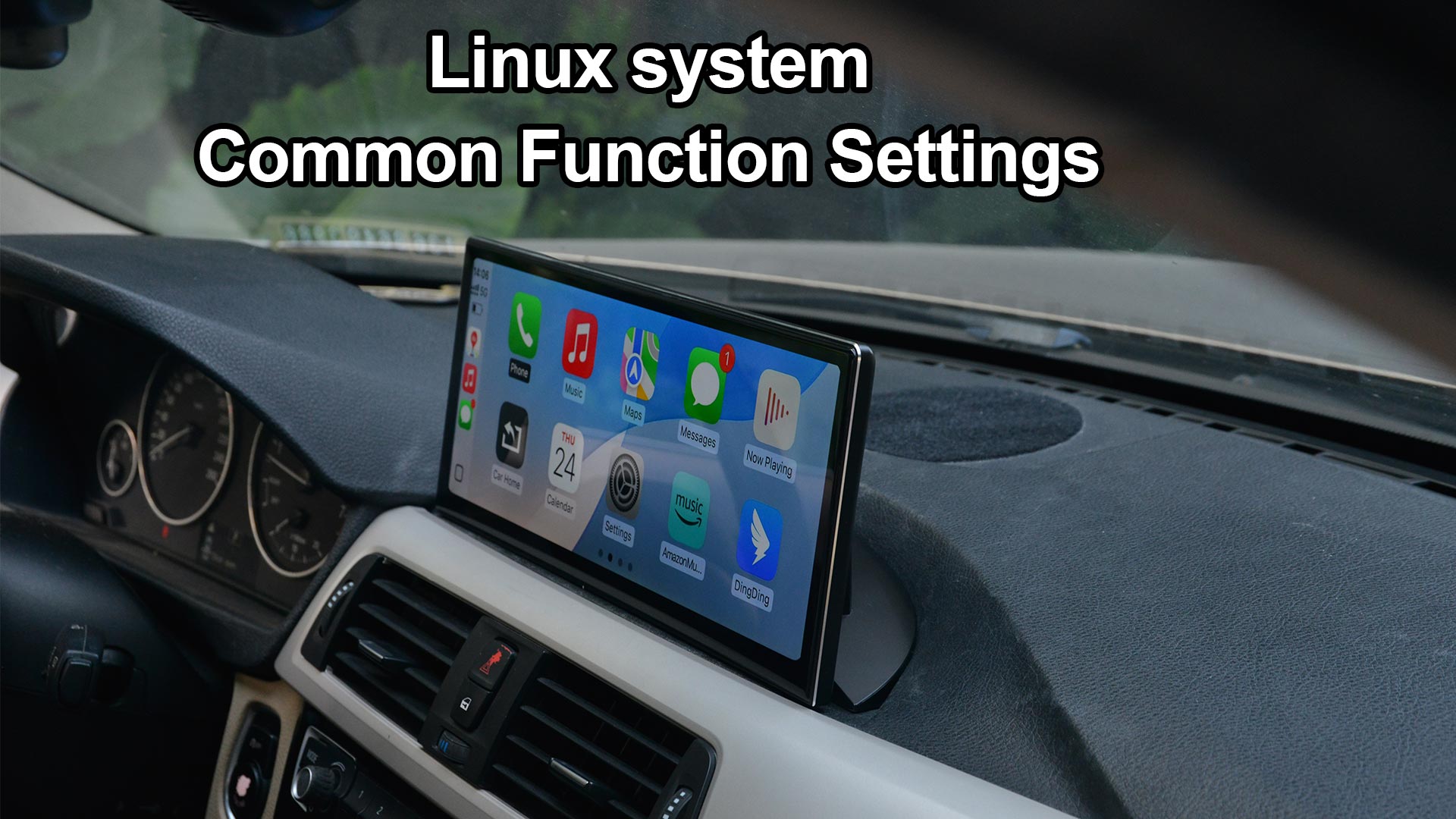

Introduction to PEMP Linux Screen Settings

https://youtu.be/q0AJrV49NLU?si=a31EEAeUGLACSF3T

OEM Bluetooth connection method

https://youtu.be/gKqeUAbMyCs?si=FWjShq1Ii6HSFzUX
