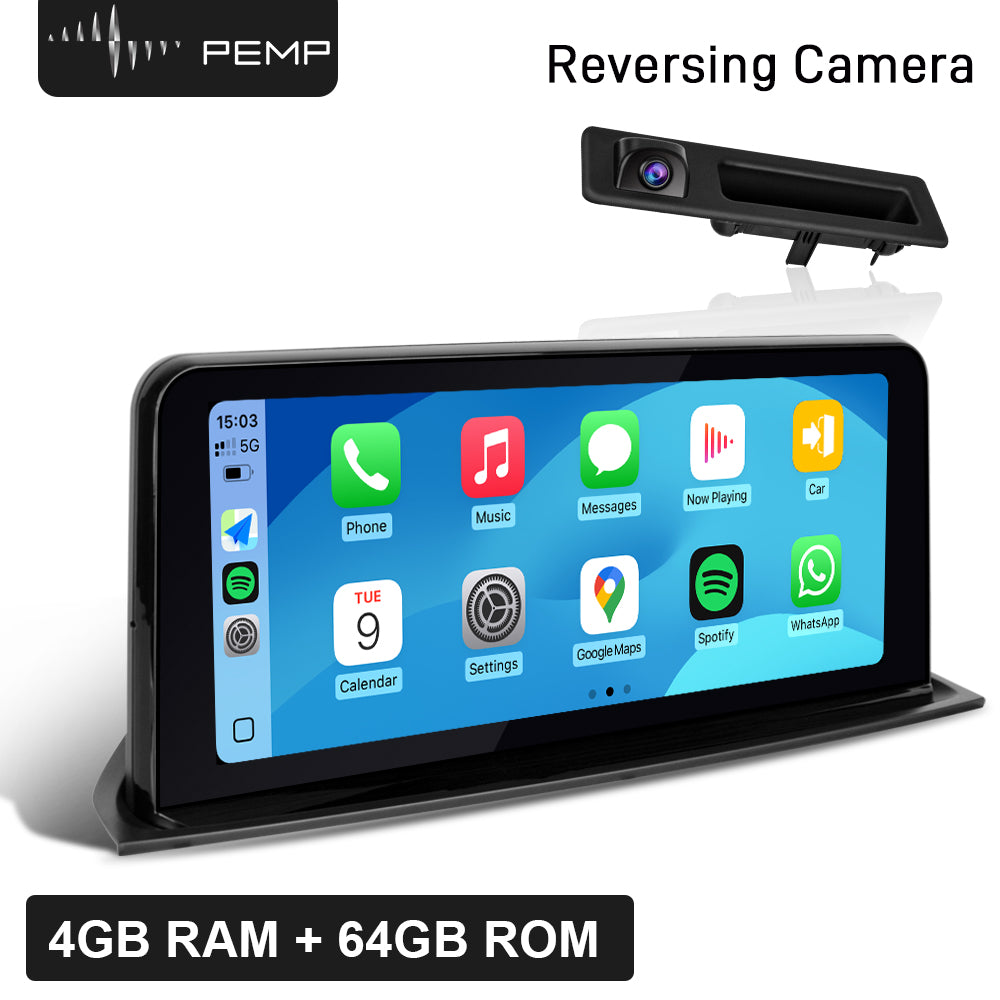

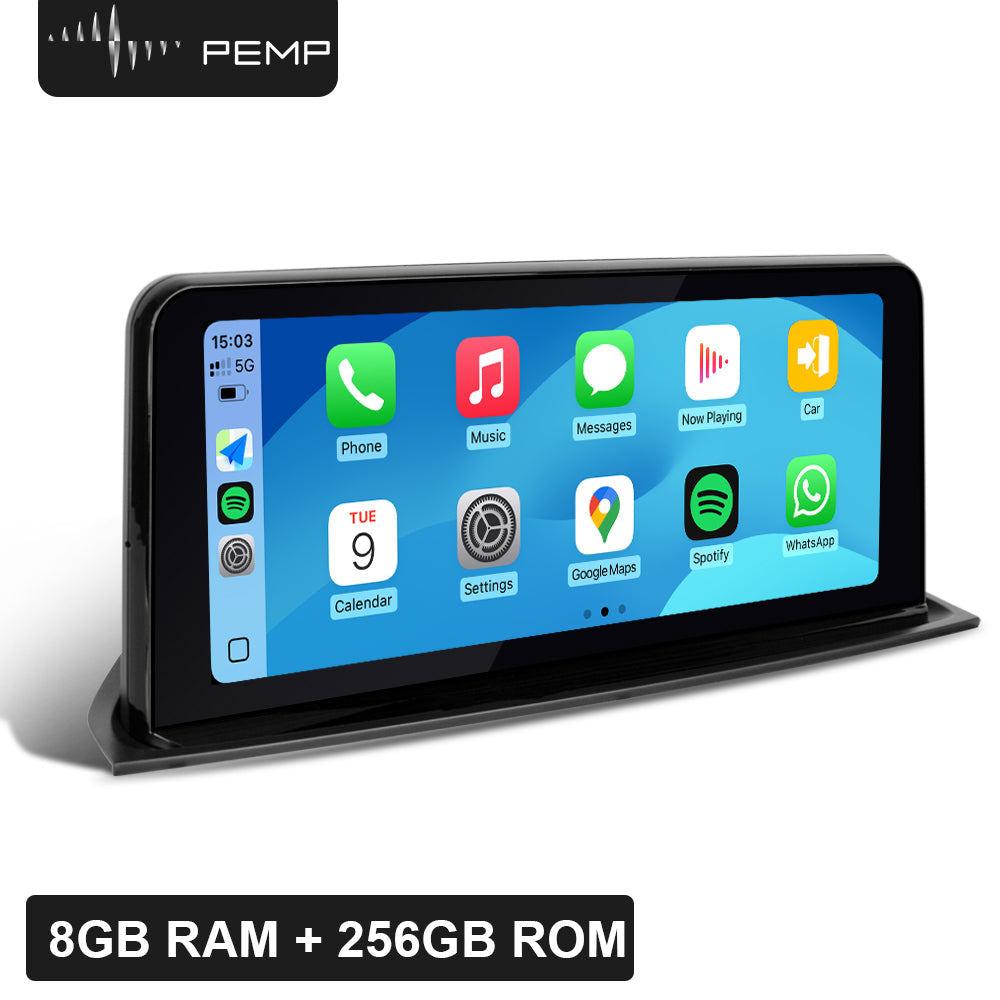

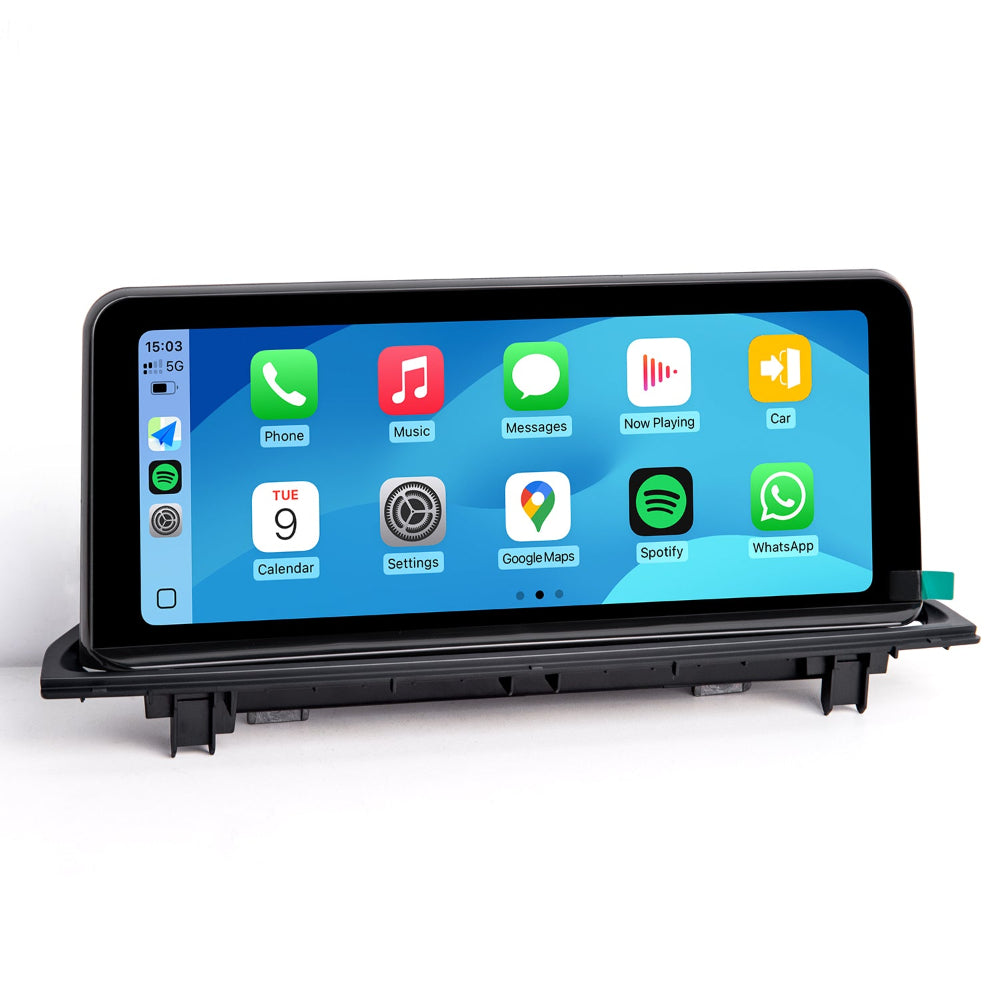

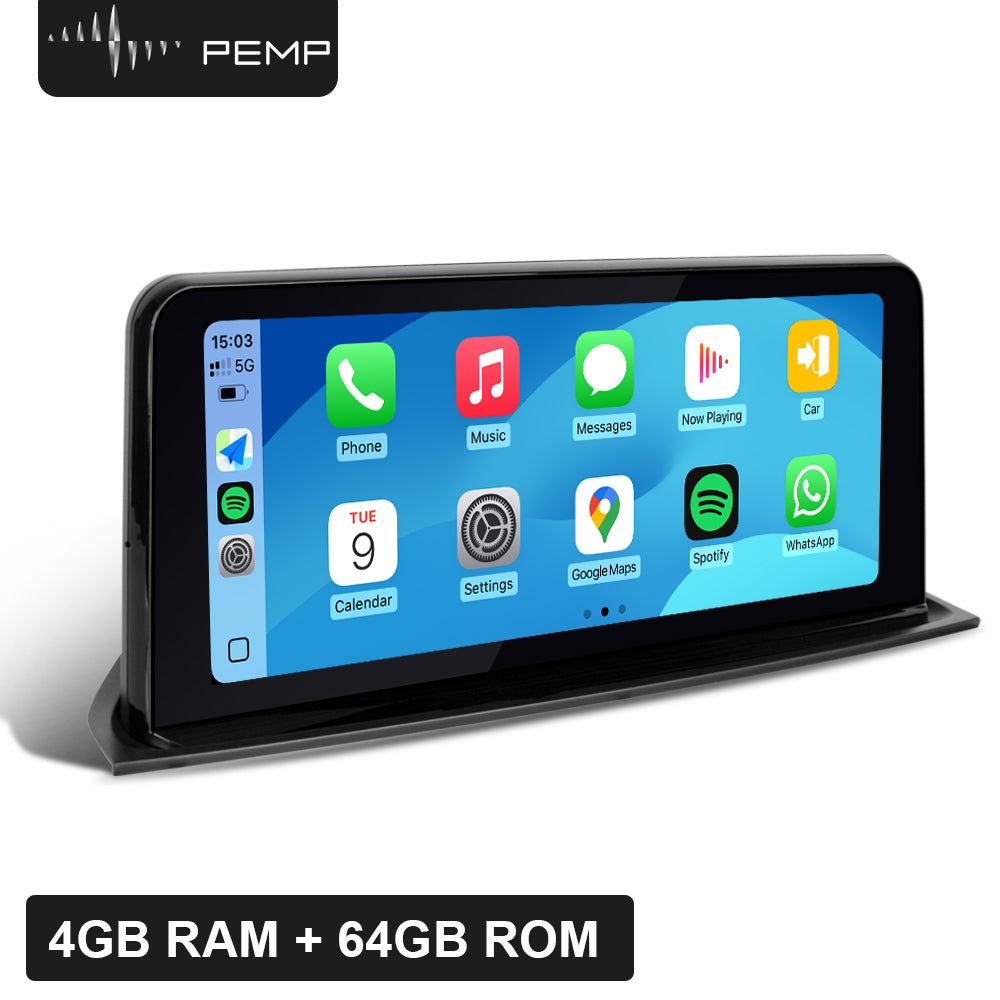

PEMP (5209) Android 13 10.25" IPS 1920X720 Screen Qualcomm Snapdragon 680 8-core CarPlay Android Auto for BMW X1 F48 NBT(2016-2017)

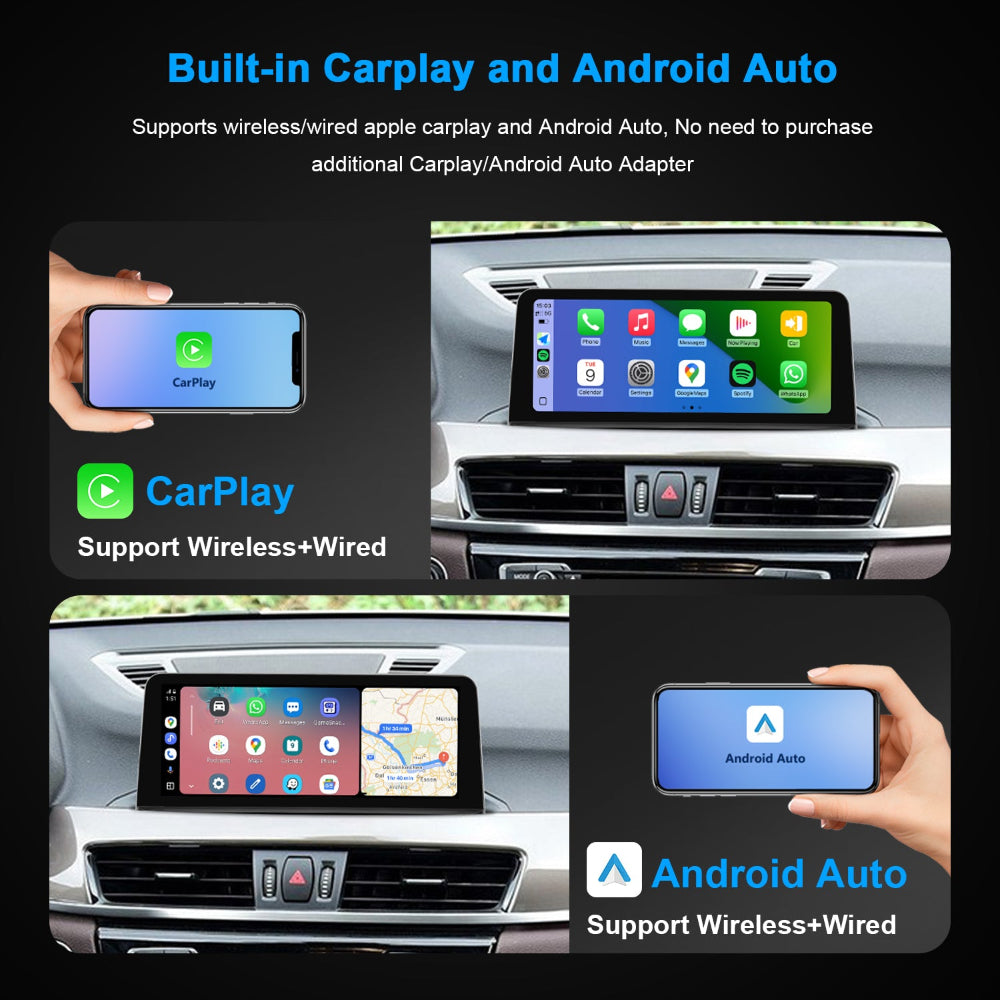

wireless Carplay for BMW X1 F48
Built-in wireless Carplay

Wired android play auto for BMW X1 F48
Built-in Wired android play auto

Wired/wireless Mirror link for BMW X1 F48
Built-in Wired/wireless Mirror link

How to get the CarPlay Sound from OEM Bluetooth?
If Your Car has the OEM Bluetooth, you can update the Zlink APK get the Sound from OEM Bluetooth.

Step(youtu.be/ZOwsDHdqkK8):

1. Contact the service team to obtain new ZLINK software and upgrade your ZLINK.

2. Select Manual AUX in the settings.

3. Connect your cell phone to OEM Bluetooth, and select your cell phone Bluetooth device as sound output in OEM interface;

4. Connect PEMP Bluetooth to get CarPlay or Android Auto interface, play music, the sound will come out from the original car Bluetooth.

Utilizes Non-air-gap lamination technology
Non-air-gap lamination technology has the following advantages over ordinary lamination

1. The image is more real and clear;

2. The viewing angle can reach 178 degrees;

3. Long-term use effectively prevent dust from entering the display;

Blue Anti-Glared Technology
Use The Blue Anti-Glared Touch Screen to Absorb The Reflected Light And Make The Display Clearer.

Multi Point G + G Capacitive Touch Prevents the Screen From Being Scratched And Makes It Easier To Clean.

How are we different?

SIM and SD Card Slots on Top
There are SIM and SD card slots at the top of the product, and you can insert and remove cards after installation. And the use of mobile phone SIM card tray design, strong versatility.

Black Background and Piano Lacquer Crafts
Using the close-fitting process, there is 0 distance between the display screen and the touchpad. The background is darker when the screen is off; the colors are more realistic when the screen is on!

The whole face frame is all around the piano paint process, the use of integrated design, the firmness of the product is better!

1MM Frame
The frame is only 1MM, which increases the viewing area of the display. The product is more refined!

Manual Transmission Back Camera Settings
Settings> factory>pass word070305> vehicle> Gear Selection, pls select type2 or 3

Then reverse the vehicle, and the reversing screen will be displayed normally.

Move The Original Host Fiber Optic Cable To The Android Harness
If your OEM radio has a fiber optic cable above the power harness, Pls move it to the Android harness. Otherwise you can't get the car information and the Android sound. And it will be accompanied by a heartbeat wheezing sound.

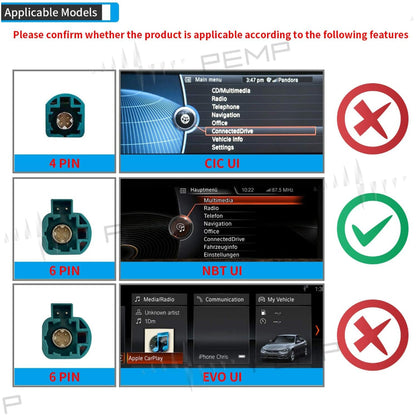

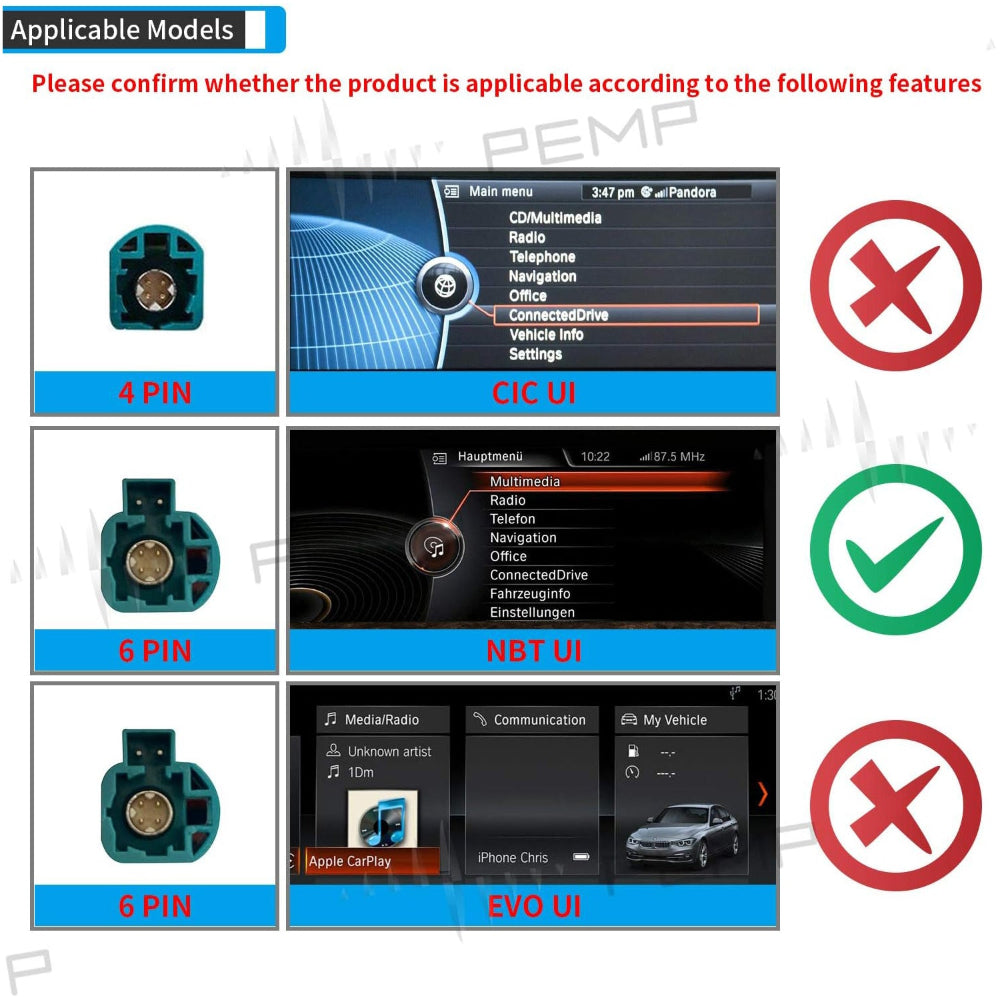

Only for BMW X1 F48 NBT System
This product is only suitable for BMW NBT system. There is a 6PIN LVDS at the back of the OEM screen. It does not support CIC 4PIN and EVO system. If you buy the wrong system, you will not be able to install it.

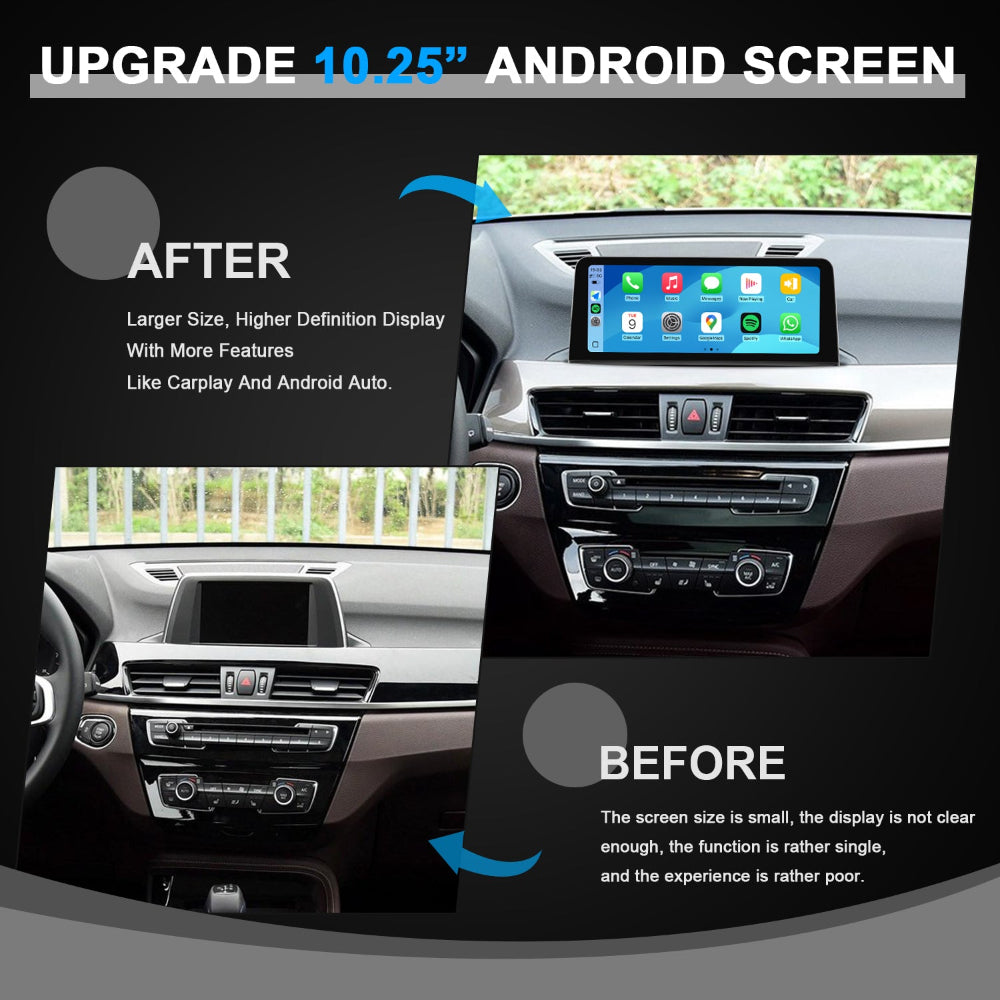

How to install BMW X1 F48 Android screen

https://youtu.be/lR1y8VZKa-k
