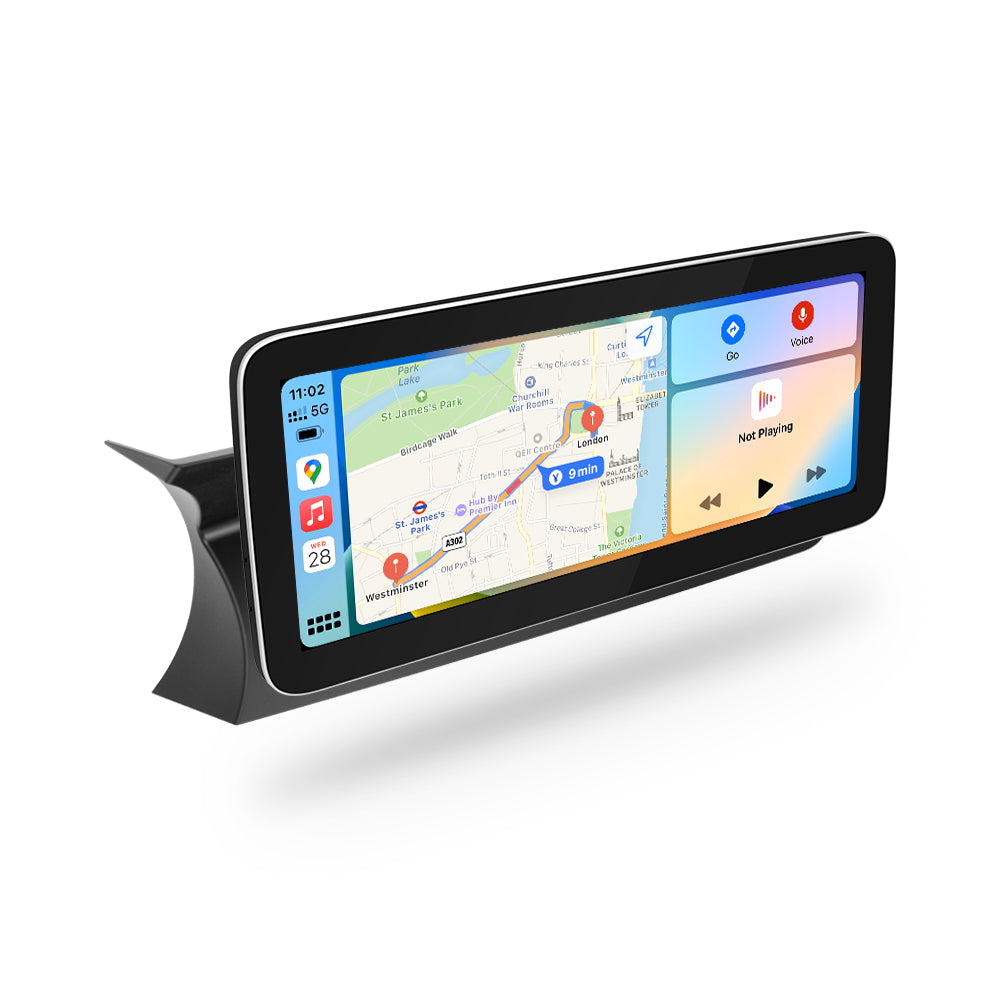

PEMP (7L12) 12.3" 1920 x 720 Linux Car Radio Multimedia Screen Support Carplay Android Auto Mirror Link for Mercedes Benz 2012-2015 C Class W204 NTG4.5 System

Support Wired/Wireless Apple Carplay
Built-in wired/wireless carplay function. You can use your phone app on PEMP Linux screen, support touch control.

Built-in Wired/Wireless Android Auto Function.
You can use your phone app on PEMP Linux screen, support touch control.

Built-in Wired/Wireless Mirroring Link Function.
You can mirror all the pictures of your mobile phone to PEMP Linux screen.

Move The Original Host Fiber Optic Cable To The New Harness

If your OEM radio has a fiber optic cable above the power harness, Pls move it to the new harness. Otherwise you can't get the car information and the CarPlay sound. And it will be accompanied by a heartbeat wheezing sound.

No Need The Bracket When Your Install The W176 C117 X117 W463 W463 X156
If you are installing CLASS A (W176) CLA(C117 X117) G CLASS (W463) GLA (X156) NTG 4.5, you don't need the installation bracket in the box.

You will need to use the mounting brackets from the original car.

Support the OEM and After-market Camera

You can select the camera option in the settings the after-marketcamera only support CVBS or 720P AHD format

Need use the USB IN1 Connect the Wired Function

Be sure to use USB IN 1 to connect the wired CarPlay Android auto and Mirror link function

Set the OEM Resolution

Please select the correct resolution for the OEM display with in the settings, other wise the OEM Car INFO may not display properly.Setup>Car Settings> Original Car's Screen Resolution> Select the item

Support the OEM or after-market Camera

Please select the correct camera option within Settings Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.

How to avoid Linux sound not norma

1.When your car has AMl, give priority to plug in the AMl audio cable.

2. lf it doesn't have AMl interface and has AUX input, you need to use the AUX audio out cable to connect.

Linux devices can directly activate the AUX

STEP: Settings-Car Settings-AUX Activation
After the AUX is activated, the Linux device will restart automatically. After restarting, AuX is activated successfully.

NTG 4.5/4.7 Manual Switching AUX Function Operation Setting Methods

When the sound is unstable using Auto AUX, you can manually switch the AUX to get a stable sound

How to install Mercedes Benz W204 Linux screen

https://youtu.be/3E1KfmN6b98
