PEMP (NTG5.0) for Mercedes W205 X253 W447 X156 C117 W463 W176 W212 NTG 5.0 Accessories CarPlay Android auto MMI Box use The OEM Microphone.

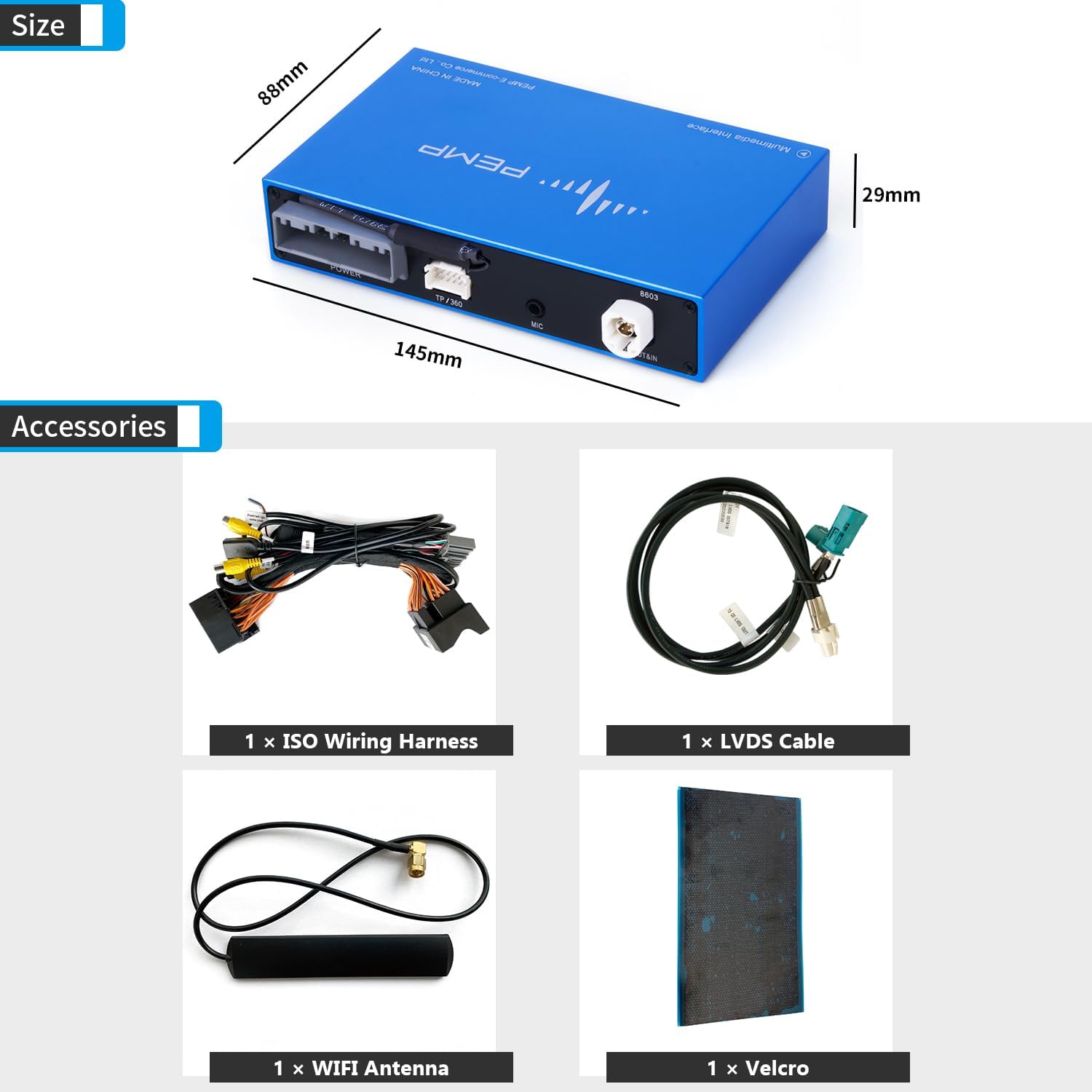

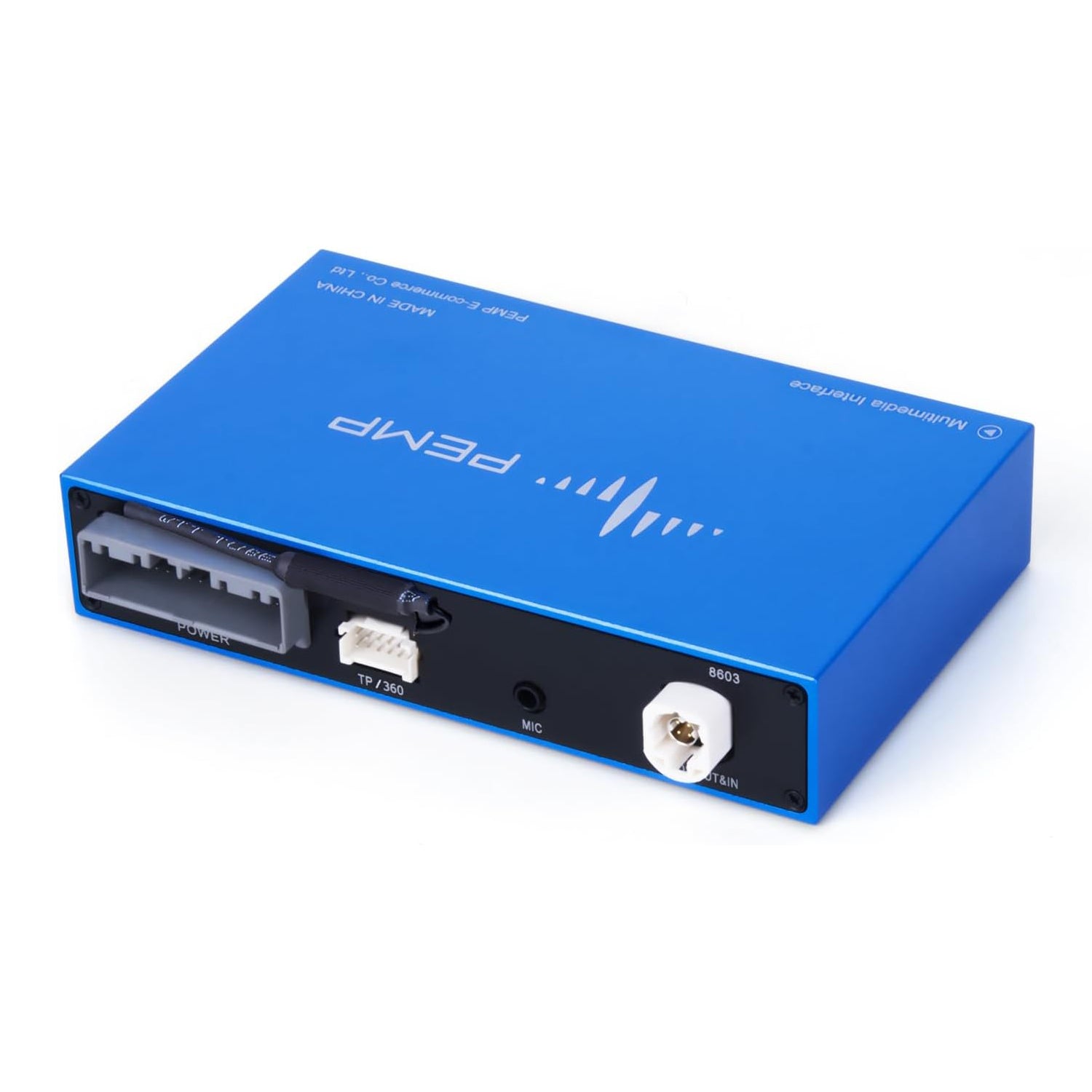

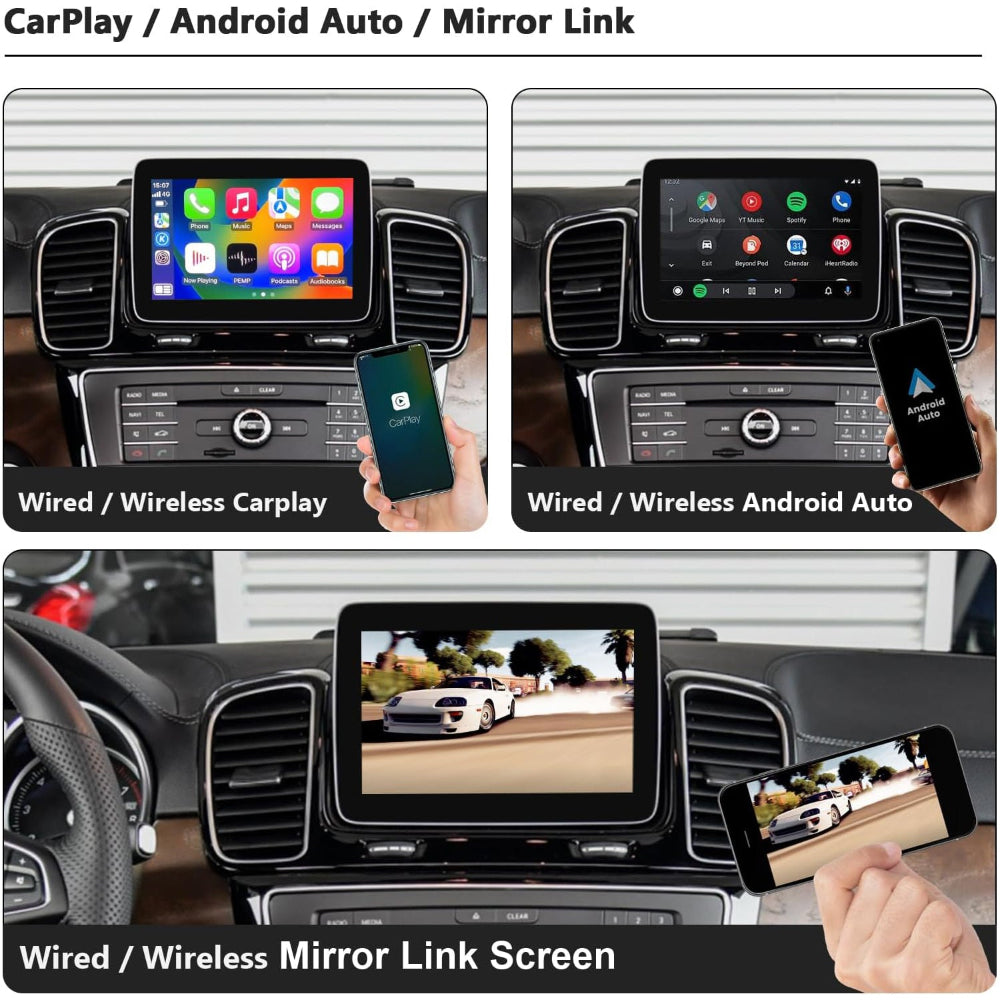

Built-in Wired And Wireless Carplay
Built-in Apple Carplay function, you can use the touch screen and OEM Knob control the menu of the carplay interface.

Built-in Wired Android Auto
Built-in Wered Android auto function, you can call on the android auto interface.

Built-in Morror Link Function
if you use the android phone, you should connect us get the morror link APP.

NTG 5.0 MMI Box Dial Switch And How To Connect The OEM LVDS

How to set the DIAL SWITCH?

1. If your car is a C/GLC/X Class 7"Screen, please set as A;

2. If your car is a C/GLC/V/X Class 8.4" Screen, please set as B;

3. If your car is a CLE/GLA/GLS/CLS/CLA/A/B Class 7" Screen, please set as C;

4. If your car is a CLE/GLA/GLS/CLS/CLA/A/B Class 8.4" AND E Class 7" Screen, please set as D;

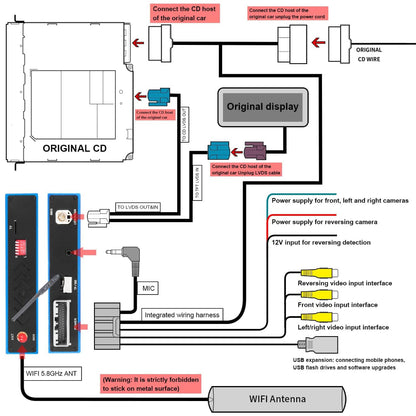

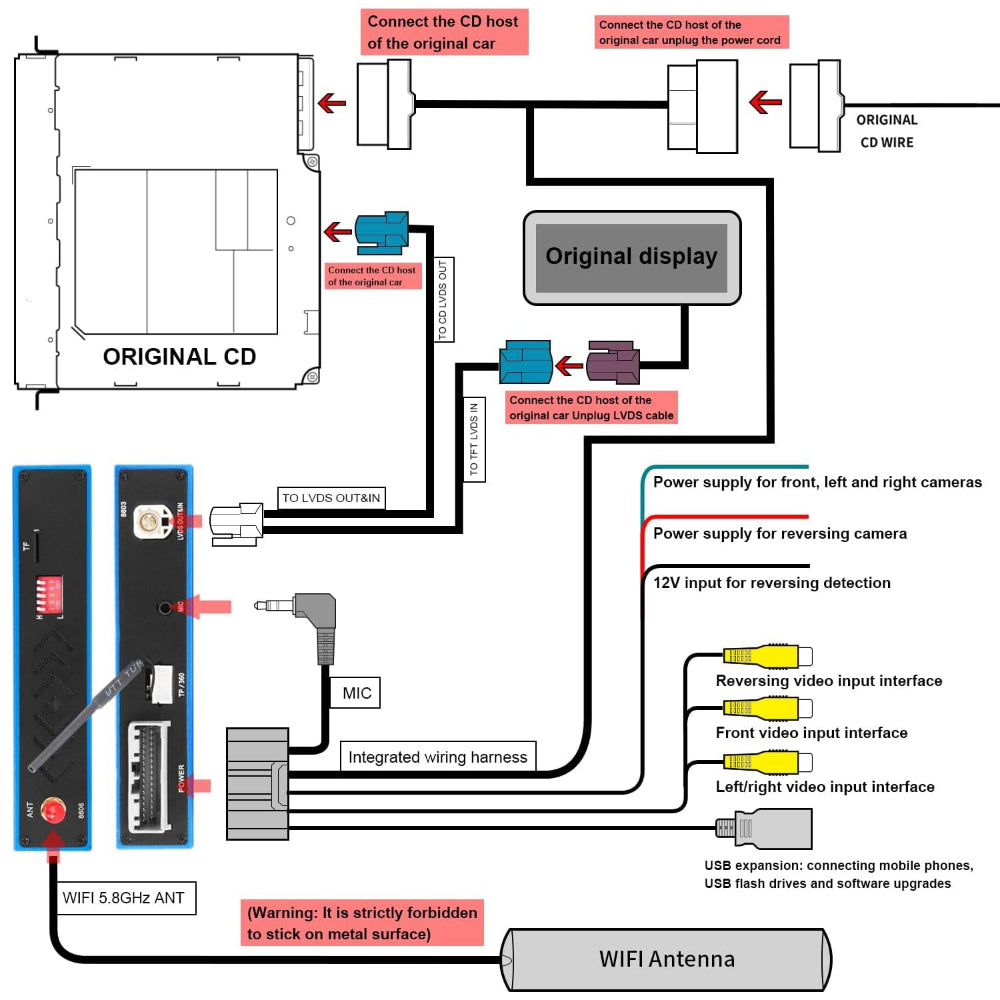

How to Connect the OEM LVDS Cable?

Step 1. Please unplug the original LVDS harness behind the OEM radio; and connect it to the TO TFT LVDS IN labeled TO TFT LVDS IN;

Step 2. Please plug the TO CD LVDS OUT into the OEM LVDS socket position.

IMPORTENT: HOW TO GET THE MMI BOX'S SOUND

NEED USE THE OEM BLUETOOTH GET THE SOUND OF THE CARPLAY OR ANDROID AUTO
Steps to get MMI BOX sound

Step 1: Open the OEM menu, find the Bluetooth menu, click Search Device ;

Step 2: Search for DC_AUDIO_BT.... , and then click to connect it;

Step 3: After connecting successfully, under OEM Bluetooth devices, it will show the device: DC_AUDIO_BT....

Step 4: Open MMI BOX Bluetooth's interface, use your cell phone to search for PEMP MMI BOX Bluetooth receiving device, its name is: PEMP BOX_....

Step 5: After your phone successfully connects to the Bluetooth receiver of MMI BOX, it will automatically connect to CarPlay or Android auto.

Step 6: You can get the sound of CarPlay or Android auto under the car OEM menu Bluetooth device.

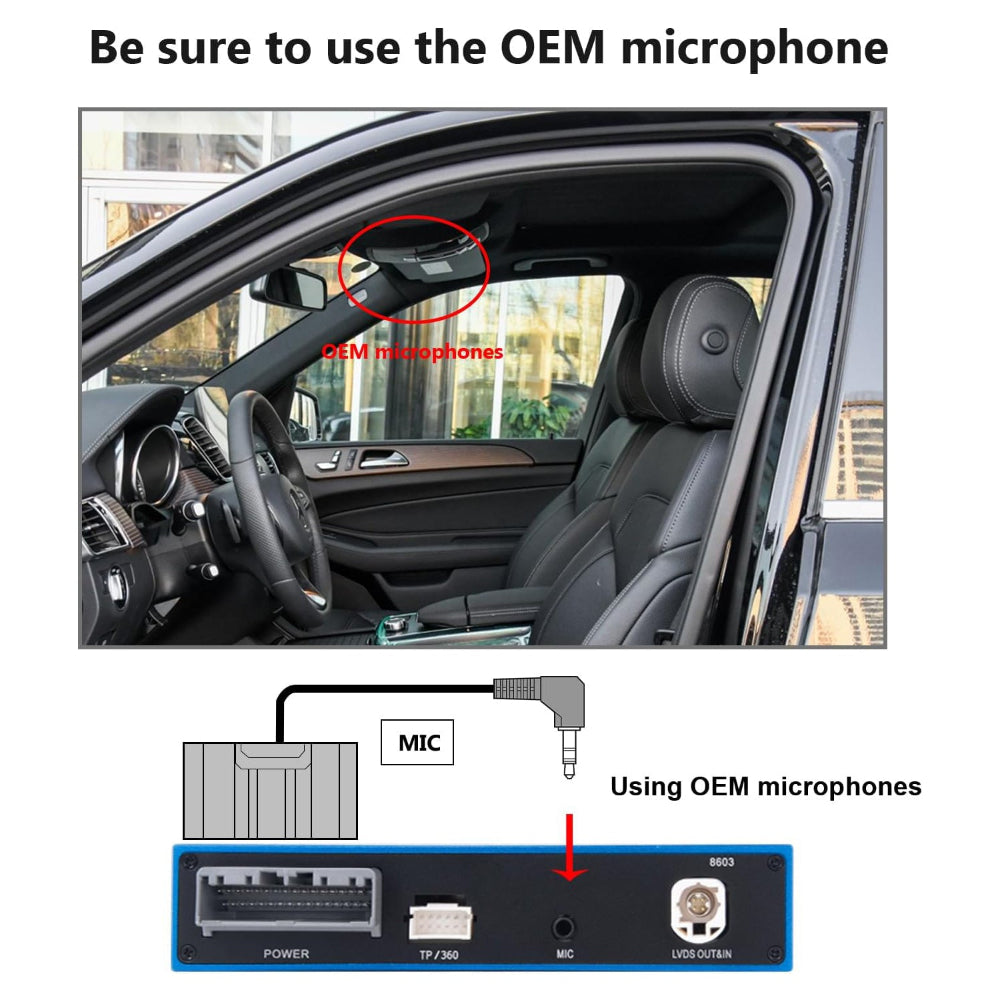

YOU CAN USE THE OEM MICROPHONE

How To Connect The Microphone And Settings
USE THE OEM MIC

1. If your car has the OEM microphone, you need insert the mic cable of the iso harness to the MIC Socket on the box;

2. Set the microphone to OEM microphone.

Set The Camera And Connection

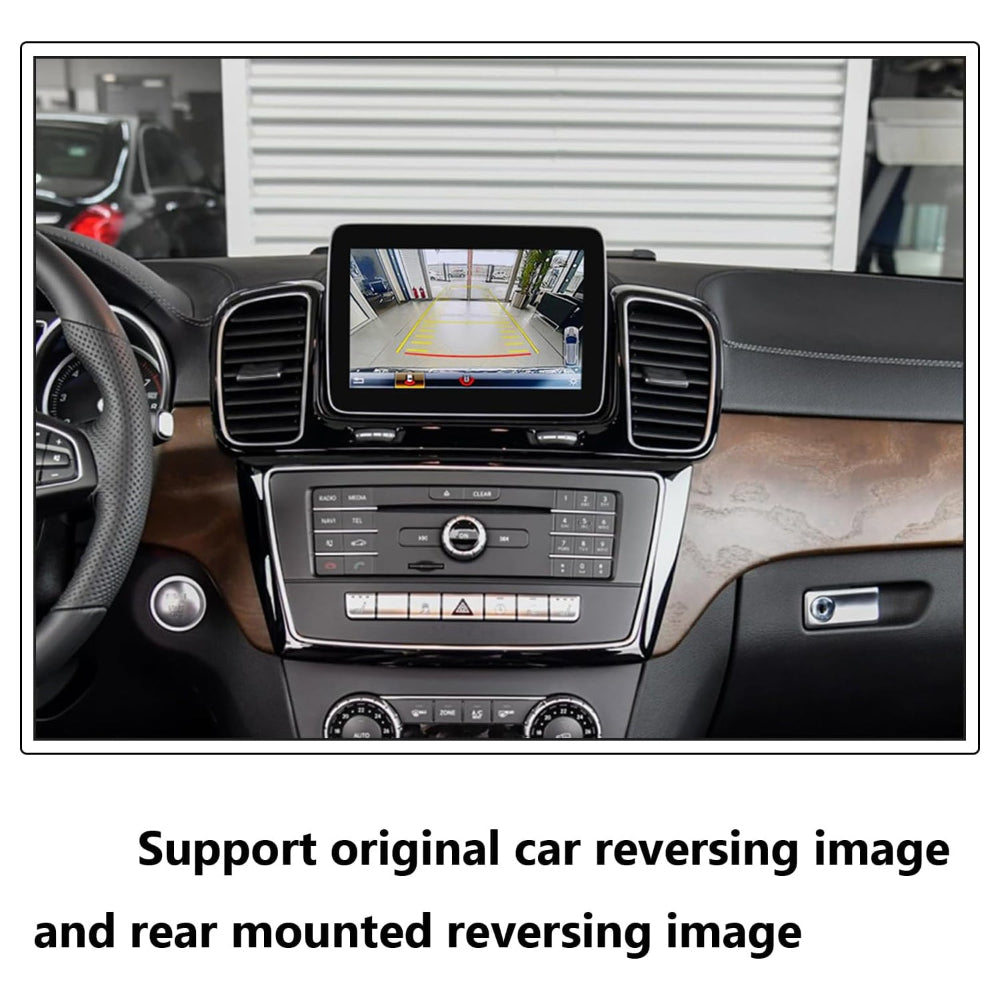

1. if the car has OEM camera, you need select the Factory Camera in the settings;

2. if you install a after-market camera, you need select the Aftermarket Camera option in the settings;

3. if the car is a Manual Transmission, you need select the 12V Active option in the Car settings. At the same time, you need to use the power cord of the backup light to connect with the Backup light 12v in.

Please Move The OEM Fiber Optic Harness To The PEMP ISO Harness
If you have fiber optics on your radio's ISO harness, be sure to move it to the corresponding location on the PEMP ISO harness. Allow it to communicate with your radio, otherwise you will not get sound.

MMI Box for Mercedes NTG 5.0 Installation Video

https://youtu.be/I3uSMNXp2V8
